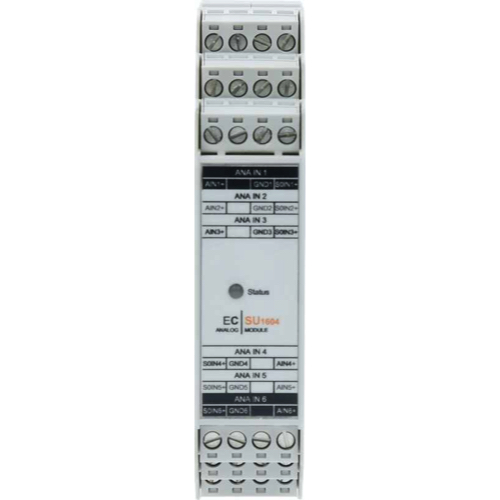

Analog Inputs (6-fold)
Input quantity:
20 mA: [±20 mA (±60 mA max.)]
Voltage drop at 20 mA = 0.94 V, swell = ±20 %, load = 47 Ω, sample rate = 500 Hz, resolution ±15 bit, accuracy: 0.1 %
S0: RShunt 25 Ω
S0 compatible square wave pulses, ±24 V nominal (±50 V max.), Rin 5.1 kΩ
Design: electrically isolated, from each other and against TBUS-GND
Mechanical Design: Width 22.5 mm x Height 100 mm x Depth 107 mm
Auxiliary Power Supply: Power consumption: Max. 40 VA; 6 × analog input: 1W
Memory: MRAM: 4 MB
Ambient Conditions
Operating temperature range: -10 ... +55 °C
Storage temperature range: -25 ... +70 °C
Relative humidity: < 75%
Elevation: Up to 2000 m
Place of use: Indoors
Pollution degree: PD2
