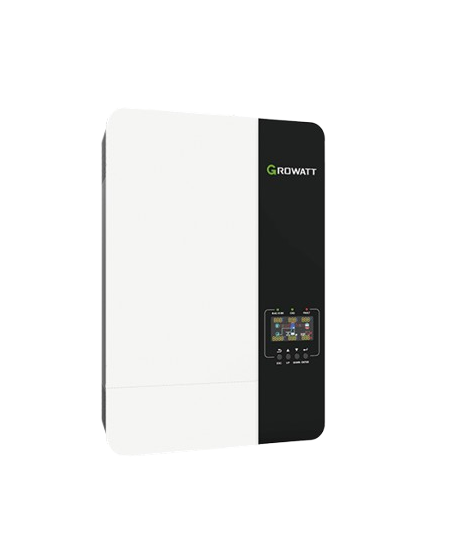

GROWATT SPF 5000 ES Off-Grid Inverter (120 VDC ~ 430 VDC, 5000 VA / 5000 W)

Battery Voltage: 48VDC

Battery Type: Lithium/Lead-acid

INVERTER OUTPUT:

Rated Power: 5000VA/ 5000W

Parallel Capability: Yes, 6 units maximum

AC Voltage Regulation (Battery Mode): 230VAC ± 5% @ 50/60Hz

Surge Power: 10000VA

Efficiency (Peak): 93%

Waveform: Pure sine wave

Transfer Time: 10ms typical, 20ms Max

SOLAR CHARGER

Maximum PV Array Power: 6000W

MPPT Range @ Operating Voltage: 120VDC ~ 430VDC

Number of Independent MPP Trackers/ Strings Per MPP Tracker: 1/1

Maximum PV Array Open Circuit Voltage: 450VDC

Maximum Solar Charge Current: 100A

AC CHARGER

Charge Current: 80A

AC Input Voltage: 230 VAC

Selectable Voltage Range: 170-280 VAC (For Personal Computers) ; 90-280 VAC (For Home Appliances)

Frequency Range: 50Hz/60Hz (Auto sensing)

PHYSICAL

Protection Degree: IP20

Dimension (W/H/D): 330/485/135mm

Net Weight: 12kgs

Datasheet
