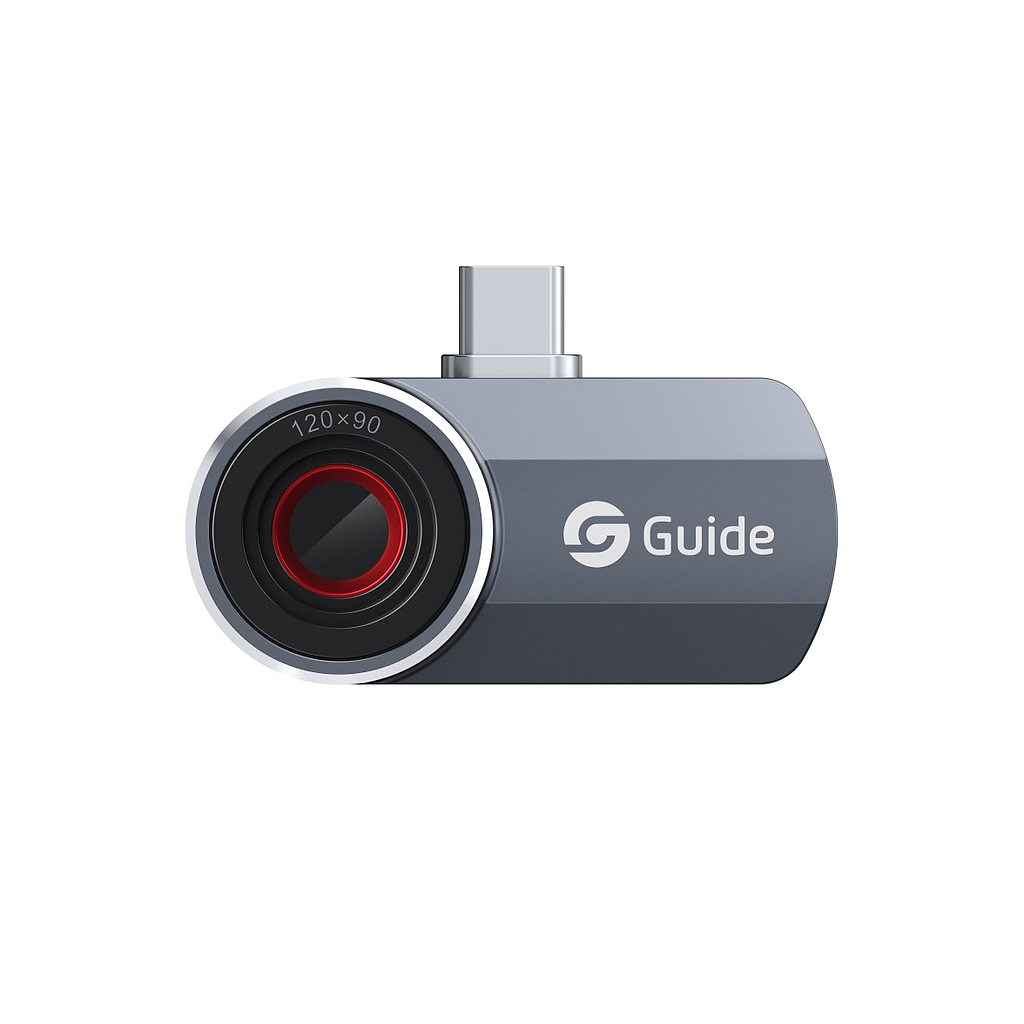

Guide ES1 Smartphone Thermal Camera (-20°C~150°C, 0°C~ 550°C, 120×90@12µm, 50°×38°)

Imaging and Optics

Core Technology: Equipped with the complete ApexVision S1 system architecture: ApexCore S1 Detector + Nexus 1.0 Platform + SharpIR 2.0 Algorithm

Detector Type: VOx, 7.5 to 14 µm

Infrared Resolution: 120 × 90 @ 12 µm

Super Resolution: Supports real-time super-resolution reconstruction, upgradeable to 480 × 360

NETD: ≤ 15 mK (@30°C)

Frame Rate: 25 Hz

Focal Length: 1.6 mm

Field of View (FOV): 50° × 38°

IFOV: 7.27 mrad

Minimum Object Distance: 0.1 m

D Ratio: 138:1

Focusing Mode: Focus-free

Measurement and Analysis

Measurement Range: Supports automatic switching between -20°C to 150°C and 0°C to 550°C

Measurement Accuracy: ±2°C or ±2%, whichever is greater

Analyzed Targets: Spot, line, area

Alarm: Available

Image Display

Image Modes: IR, PIP (access to mobile phone camera)

Color Palettes: 12 palettes and 1 customized palette

Digital Camera: None

Functions

Recording Function: Photo and video

Other Functions: OTA update

Storage and Transmission

External Interface: USB Type-C Male Connector

Power System

Battery Type: Battery-free (powered by mobile phone)

Power Consumption: 310 mW

Environmental Parameters

Working Temperature: -20°C to 50°C

IP Rating: IP54

Drop Resistance: 2 m drop test

Physical Parameters

Weight: 25 g

Dimensions: 51 × 24 × 15.1 mm

Software Kit

FocusIR (iOS/Android)

Standard Accessories

One device

Interface protective case

Carrying bag

Quick Start Guide

Warranty card
