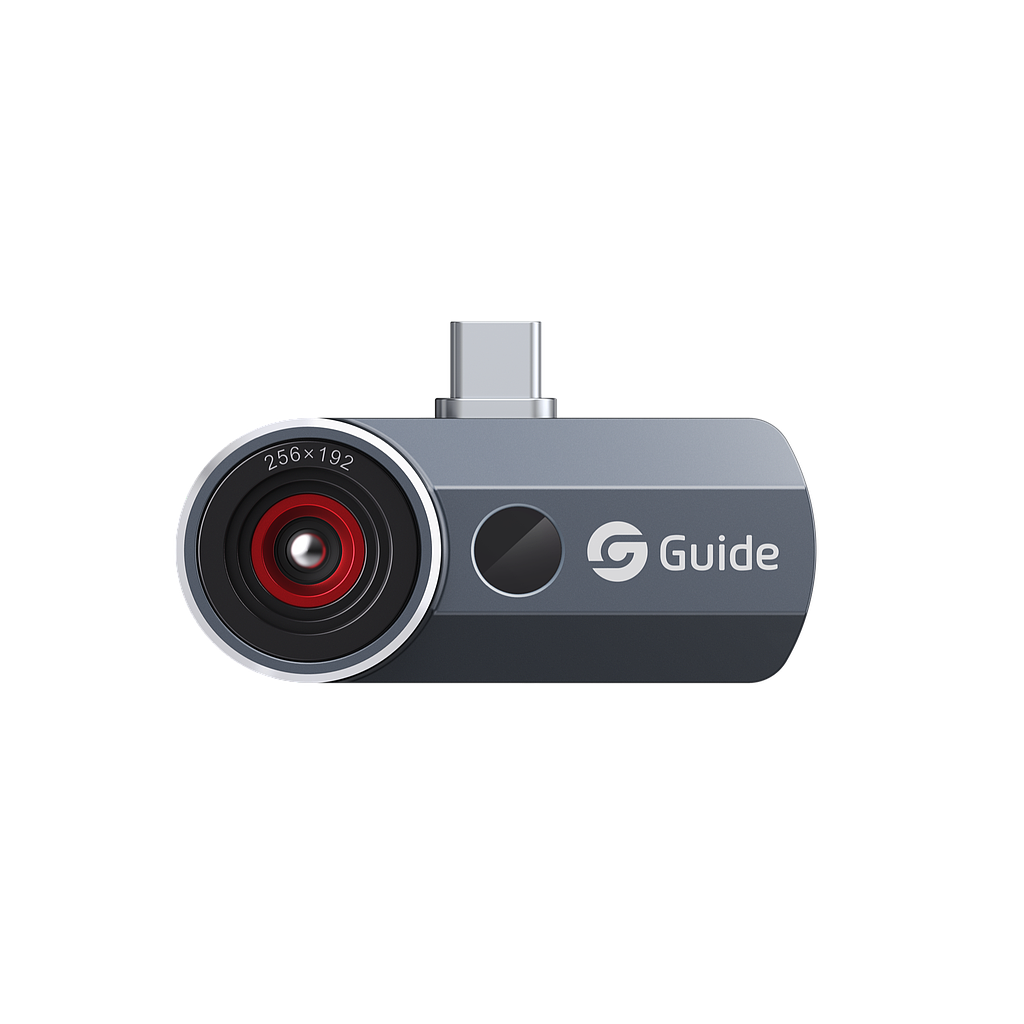

Guide ES2+ Smartphone Thermal Camera (3.2 mm,, -20°C đến 150°C 0°C đến 550°C)

Core technology Equipped with full ApexVision S1 system architecture: Detector ApexCore S1 + Platform Nexus 1.0 + Algorithm SharpIR 2.0

Detector type VOx, 7.5 to 14µm

Infrared resolution : 256×192@12µm

Super-resolution :Support real-time super-resolution reconstruction, upgrade to 512×384

NETD : ≤15mK (@30°C)

Frame rate : 30hz

Focal length: 3.2mm

Field of view:56°×42°

IFOV:3.82mrad

Min. object distance: 0.3m

D:S : 262:1

Focusing mode: Focus-free

Measurement and analysis

Measurement range Support auto-switching: -20°C to 150°C, 0°C to 550°C

Measurement accuracy ±2°C or ±2%, whichever is greater

Analyzed target :Spot, line, area Alarm Available

Image display

Image mode : IR, VIS, MIF, PIP

Color palettes

Digital camera : 800×600

Functions

Recording function :Photo and Video

Others :OTA update

Storage and transmission

External interface :USB Type-C Male Connector

Power system

Battery type : Battery-free (Powered by mobile phone), Power consumption: 620mW

Environmental parameters

Working temperature : -20°C to 50°C

IP rating :IP54

Drop :2m drop test

Physical parameters

Weight : 32g

Size :58×24×17.6mm

Software kit : FocusIR (iOS/Android)

Standard :A device, Interface protective case, Carrying bag, Quick Start Guide, Warranty card

Options:USB-C to Lightning Adapter (USB-C Female to Lightning Male), Magnetic Macro Lens (15×), Magnetic Mounting Kit
