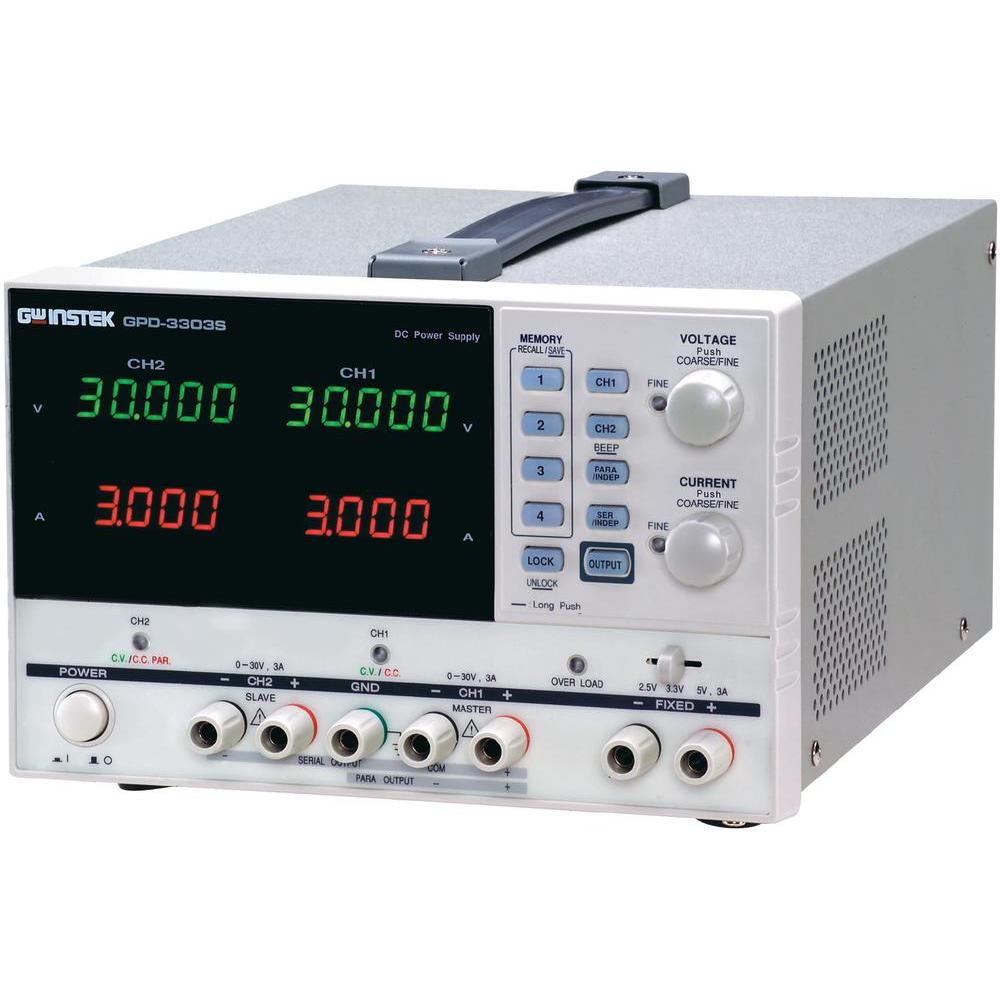

GW INSTEK GPD-3303S Three Output Programmable Linear D.C. Power Supply (30V, 3A, 3CH)

-
Accessories: Test lead GTL-104A x 2,GTL-105A x 1 ; European test lead GTL-203A x 1,GTL-204A x 2, GTL-201A x1, User manual x 1, Power cord x 1
  GPD-3303S
OUTPUT
Channel CH1 CH2 CH3
Voltage 0~30V 2.5V/ 3.5 / 5.0V
Current 0~3A 0~3A
CONSTANT VOLTAGE OPERATION
Regulation Line Regulation≦0.01%+3mV
  Load Regulation≦0.01%+3mV(rating current ≦3A)
                            ≦0.02%+5mV(rating current>3A)
Ripple  ≦1mVrms(5Hz~1MHz)
Noise ≦10mVpp(5Hz~1MHz)
Recover Time ≦100μS(50% Load Change, Minimum Load 0.5A)
Temp. Coefficient ≦300ppm / ℃
Output Range 0 to rating current continuously adjustable
CONSTANT CURRENT OPERATION
Regulation Line Regulation≦0.2%+3mA
  Load Regulation≦0.2%+3mA
Ripple Current ≦3mArms
Output Range 0 to rating current continuously adjustable
TRACKING OPERATION
Regulation of PAR  Line Regulation≦0.01%+3mV
  Load Regulation≦0.01%+3mV(rating current ≦3A)
                            ≦0.02%+5mV(rating current>3A)
Regulation os SER Line Regulation≦0.01%+5mV
  Load Resulation≦100mV
  Tracking Error ≦0.5%±10mV(10V~30V no load)
                           with load added≦300mV
                          ≦0.5%±30mV(0V~9.99V no load)
                           with load added≦300mV
Tracking Error  ≦0.1%+10mVof Master(0~30V)(No Load, with load add load regulation≦100mV)
METER
Display Voltage:4 3/4 digits 0.4" LED Display
  Current:3 3/4 digits 0.4" LED Display
Resolution Voltage:1mV
  Current:1mA
Program Accuracy(25±5℃) Voltage: ±(0.03% of RDG+ 10 digits)
  Current: ±(0.3% of RDG + 10 digits)
Readback Accuracy(25±5℃) Voltage: ±(0.03% of RDG+ 10 digits)
  Current: ±(0.3% of RDG + 10 digits)
CH3 SPECIFICATIONS
Output Voltage (2.5V/3.3V/5.0V)±8%
Output Current  3A
Regulation(25±5℃) Line Regulation≦5mV
  Load Regulation ≦15mV
Ripple & Noise ≦2mVrms
KEY LOCK
Yes
MEMORY SAVE / RECALL
4 Sets
POWER SOURCE
AC 100V/120V/220V/230V±10%,50/60Hz
DIMENSION & WEIGHT
210(W) x 130(H) x 265(D) mm, Approx .7 kg
