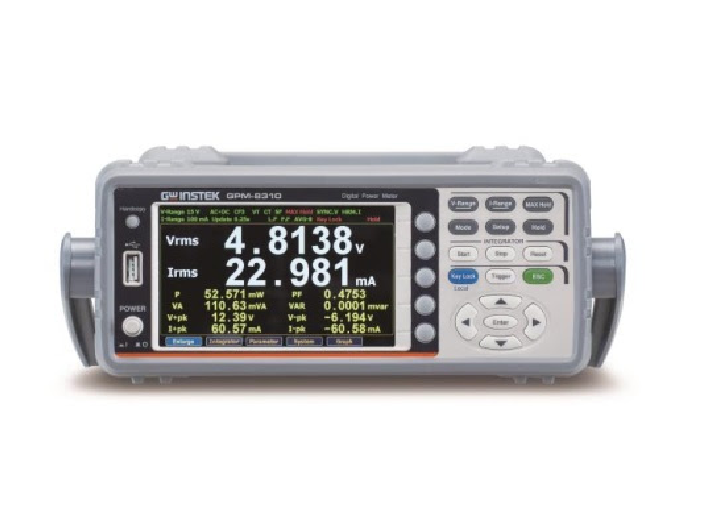

GW INSTEK GPM-8310 Digital Power Meter

• Display: 5" TFT LCD

• Wiring/ Mode: 1P2W / AC, DC

• Measurable Parameters:

V, Vpk±, I, IpK±, P, Ppk±

VA, var, PF, CFV, CFI, DEG

VHz, IHz, THDV, THDI, MCR, MATH

Wh, Wh±, P(avg), q, q±, q(avg)

TIME, V, I

• Integration: WP/ WP+/ WP-/ q/ q+/ q-, Vac, Iac

• Sample Rate: 300kHz

• Input Resistance: A : 5mΩ/500mΩ; V : 2MΩ

• Input Terminal: Rear

• Max input V,A: 1000Vrms, 30A

• Volt Range:

15.000/30.000/60.000/150.000/300.00/600.00V (6 ranges)

CF: 3 or 6 or 6A (selectable)

• Volt Accuracy (Best):

±0.1% of reading

±0.05% of range

• Power Range: 75.000mW ~ 12.000kW

• Freq Range: DC,0.1Hz~100kHz

• Interface: RS232, USB, GPIB, Option: Digital I/O (DA4)
