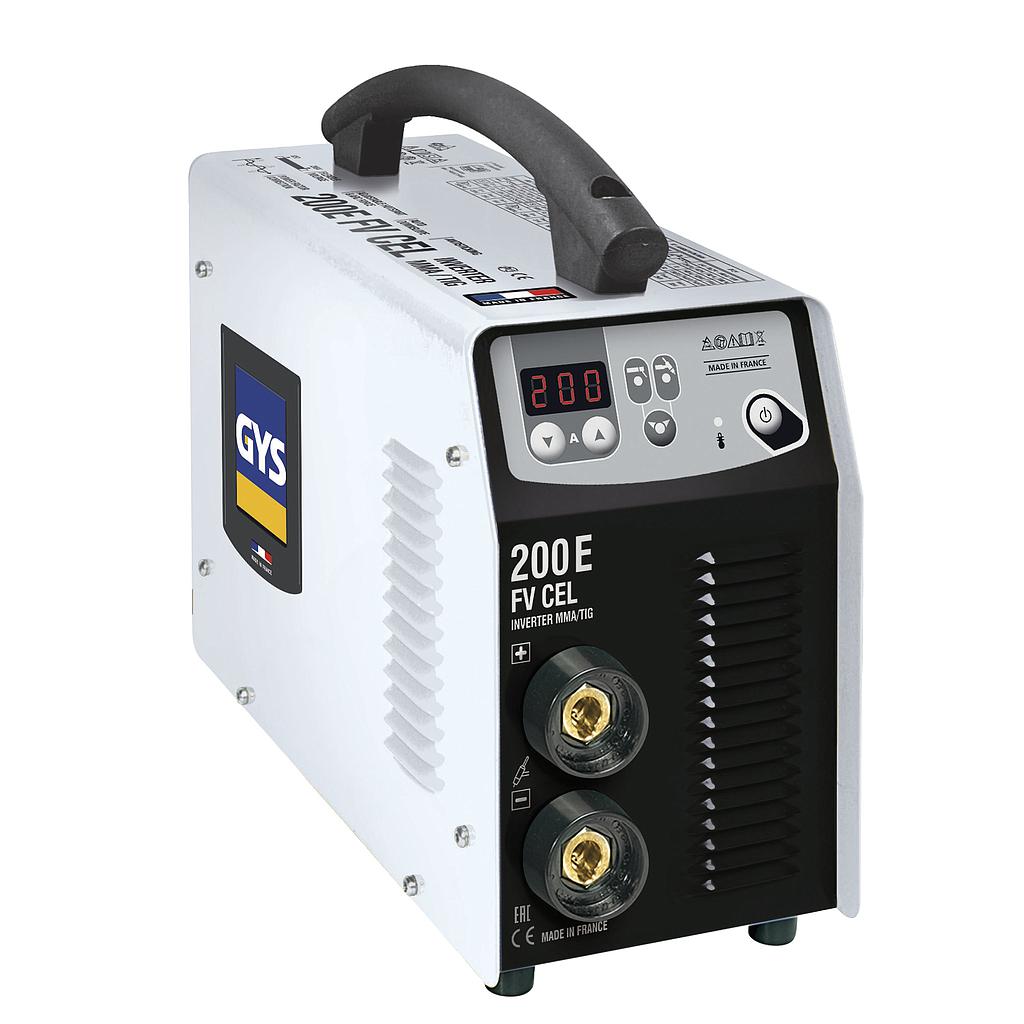

INVERTER TECHNOLOGY, MICROPROCESSOR CONTROLLED WELDING UNIT WITH KEYBOARD AND DIGITAL DISPLAY. MULTI-PURPOSE EQUIPMENT, WILL WORK ON A 16A-230V - POWER SUPPLY EVEN FOR INTENSIVE USE.
MMA:
With its high duty cycle and revolutionary arc dynamics, it will weld any kind of electrodes (Ø1.6 à 5 mm): steel, stainless steel, cast iron, rutile, basic, aluminum or cellulosic. This product ensures a stable arc with a constant intensity and features the following technology:
+ Anti-Sticking
+ Adjustable Hot Start: Makes it easier to arc with any type of metal (Low Hot Start: For thin metal sheets – high Hot Start for metals that are difficult to weld such as dirty or oxidized sheets)
+ Adjustable Arc force: For better penetration and prevention of sticking.
TIG LIFT:
Equipped with a TIG torch with valve (option), this machine ensures you to have a smooth welding line.
- TIG Lift: The arc is created by touching the metal with the tungsten electrode - avoiding tungsten inclusions and radio electrical disturbances.
- Automatic arc release: This innovative function allows the operator to finish welding without creating craters. The time is adjustable and the function is activated by a movement of the torch
Specifications:
Power supply: 230 V, 1 ph, 50/60 Hz
Fuse: 16 A
Normal current output (MMA): 5-200 A
Normal current output (TIG): 5-200 A
Maximum welding current: 200 A
No-load voltage: 108 V
Duty cycle (environment temperature at 40°C):
- MMA:
200 A/28 V @ 25%
135 A/25.4 V @ 60%
115 A/24.6 V @ 100%
- TIG:
200 A/18 V @ 35%
165 A/16.6 V @ 60%
135 A/15.4 V @ 100%
Dimensions (L x w x h): 44x37x27 cm
Weight: 9 kg
Protection class: IP21
Standard: IEC 60974-1/10 A
Optional accessories:
TIG TORCH - Length: 4 m
- Connector 35/50 mm²
Choose optional accessories when ordering
