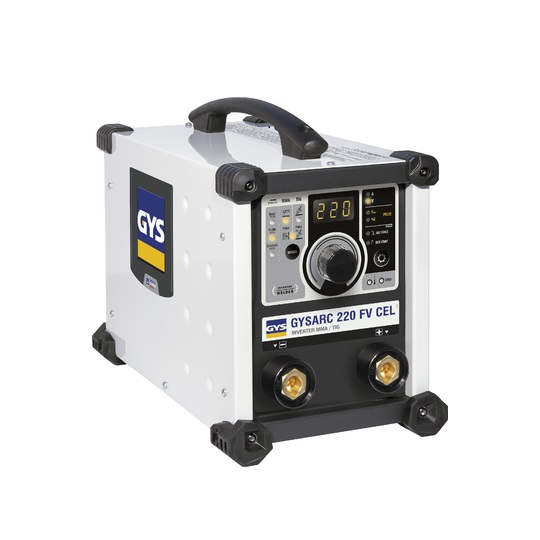

With inverter technology, the GYSARC 220 FV CEL is a single-phase 220 A MMA power source that meets the professionals’ requirements. Designed around reinforced electronics, this workstation can easily weld cellulosic, rutile, or basic electrodes. It is also equipped with the TIG lift (DC) process which ensures high quality weld beads, even on thin sheets. Robust and versatile, the GYSARC 220 FV CEL offers the user great welding comfort and maximum productivity.
- 4 welding modes (MMA & TIG DC): Welds basic, rutile and cellulosic electrodes up to Ø 5 mm thanks to 2 MMA modes:
• MMA Standard
• Adjustable Pulse MMA: ideal for welding in the vertical upright position
• TIG Lift: ignition by simply touching the workpiece. TIG welding help : Automatic arc fading
• Adjustable TIG Pulse: facilitates the welding of very thin sheets (0.3 mm) and increases bead penetration
- Integrated welding helps in MMA:
• Adjustable Hot Start: generates an overcurrent at start-up
to facilitate ignition and reduce welding defects
• Adjustable Arc Force: regulates arc length deviations and offers comfort to the welder
• Antisticking: prevents the electrode from sticking if it comes into contact with the workpiece.
- Reinforced security:
• VRD (Voltage Reduction Device): lowers the no-load voltage (< 30V) to secure welders in specific environments (mines, chemical plants, shipyards, etc.)
• Protection class IP23: ideal for outdoor and indoor environments (environments subject to dust or light rain).
• Anti-Dust (AD): Ventilation tunnel against external pollution
Specifications:
Power supply: 230 V, single-phase, 50/60 Hz
Fuse: 16 A (230 V)
Maximum welding current: 220 A
Rate current output (MMA): 10-220 A (230 V)
Rate current output (TIG): 5-220 A (230 V)
No-load voltage: 80>86 V (< 20 V VRD activated)
Duty cycle (environment temperature at 40°C):
- MMA (230 V / 16 A)
220 A/28.8 V @ 20%
130 A/25.2 V @ 60%
100 A/24 V @ 100%
- TIG (230 V / 16 A)
220 A/18.8 V @ 25%
150 A/16 V @ 60%
110 A/14.4 V @ 100%
Dimensions: L x l x h: 42 x 21 x 35 cm
Weight: 10.5 kg
Protection class: IP23
Standard: IEC 60974-1/10 A
Included accessories: Welding pliers 200A-3m + Ground cable 200A-3m, 25mm²
