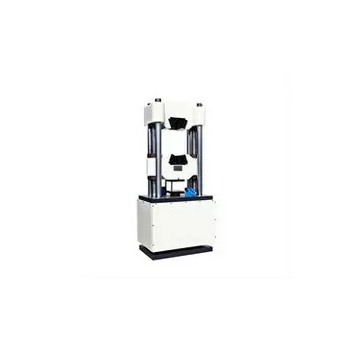

HAIDA HUD-B616-1 Hydraulic Universal Tester Metal, Steel, Iron Tensile Testing Machines With Pc (20KN-1000KN)

Name: HAIDA HUD-B616-1 Hydraulic Universal Tester Metal, Steel, Iron Tensile Testing Machines With Pc (20KN-1000KN)
Brand: HAIDA

ModelHUD-B616-1

P/NHD-B616-1

Warranty12 months

Contact

Quantity

Secure Checkout

Quality Engagement

Easy change and return

Delivery Available

Max. capacity: 30T (300KN)

Measure range: 2%-100%FS

Load Accuracy: ±1%

Elongation resolution: 0.01mm

Elongation accuracy: ±1%

Available tensile stroke: 600mm

Available compression stroke: 600mm

Test width: 500mm

Test Speed: 0.01-200mm/min

Round sample diameter: φ9-φ26mm

Flat sample thickness: 0-20 mm

Compression diameter: φ120mm

Clamp control: Hydraulic

Motor: Servo Motor

Host Machine dimension (L×W×H): 750*600*2000mm

Controller dimension (L×W×H): 1100*750*1000mm

Weight: Approx.1600KG

Power: 3∮ , AC380V± 10%, 50Hz
