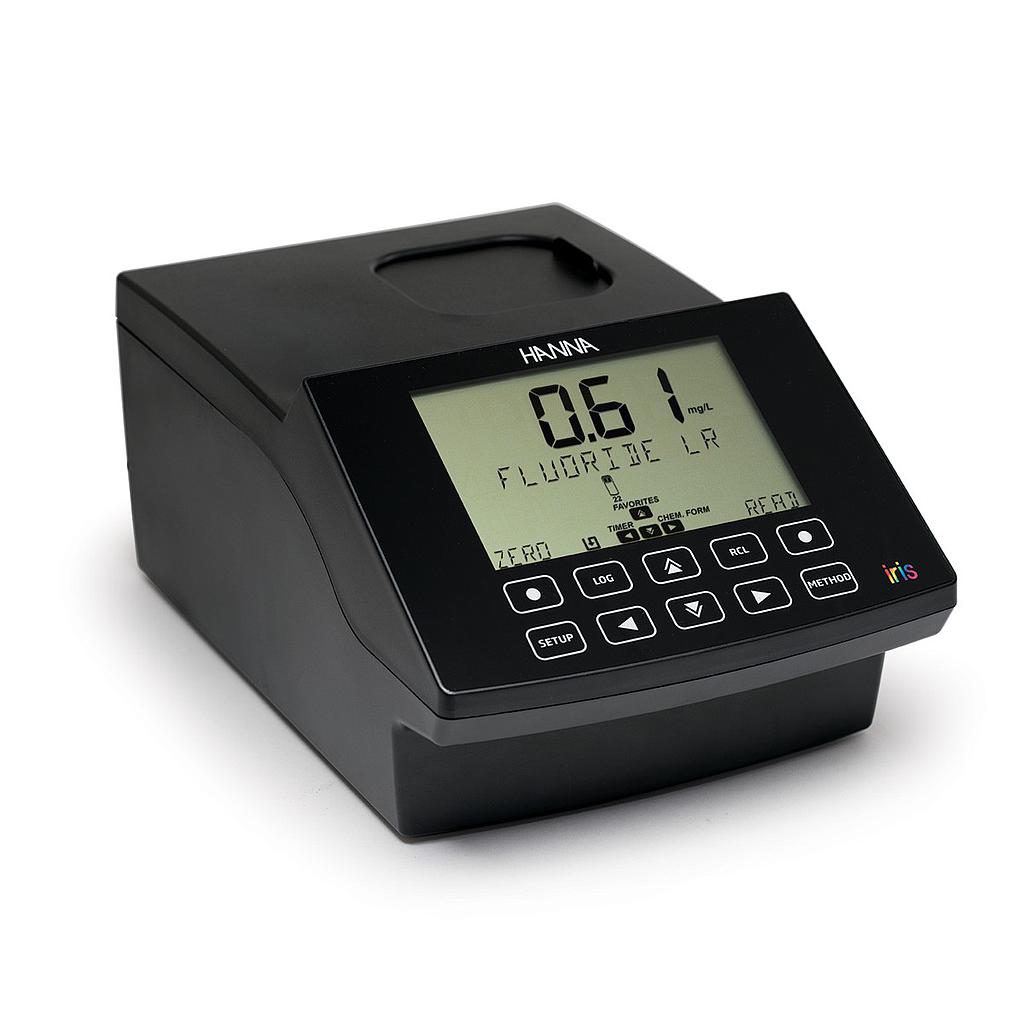

HANNA HI801-02 Iris Visible Spectrophotometer (340-900 nm; 230V)

Wavelength Range: 340-900 nm

Wavelength Resolution: 1 nm

Wavelength Accuracy: ±1.5 nm

Photometric Range: 0.000-3.000 Abs

Photometric Accuracy: 5 mAbs at 0.000-0.500 Abs

1% at 0.500-3.000 Abs

Measurement Mode: transmittance (%); absorbance; concentration

Sample Cell: 10 mm square; 50 mm rectangular; 16 mm round; 22 mm round; 13 mm round (vial)

Wavelength Selection: automatic, based on the selected method (editable for user methods only)

Light Source: tungsten halogen lamp

Optical System: split beam

Wavelength Calibration: internal, automatic at power-on with visual feedback

Data Points Stored: 9999 measured values

Connectivity: 1x USB A (mass storage host)

1x USB B (mass storage device)

Battery Life: 3000 measurements or 8 hours

Power Supply: 15 VDC power adapter

10.8 VDC Li-Ion rechargeable battery

Environment: 0 to 50 °C (32 to 122 °F); 0 to 95% RH

Dimensions: 155 x 205 x 322 mm (6.1 x 8.0 x 12.6")

Weight: 3 kg (6.6 Ibs.)
