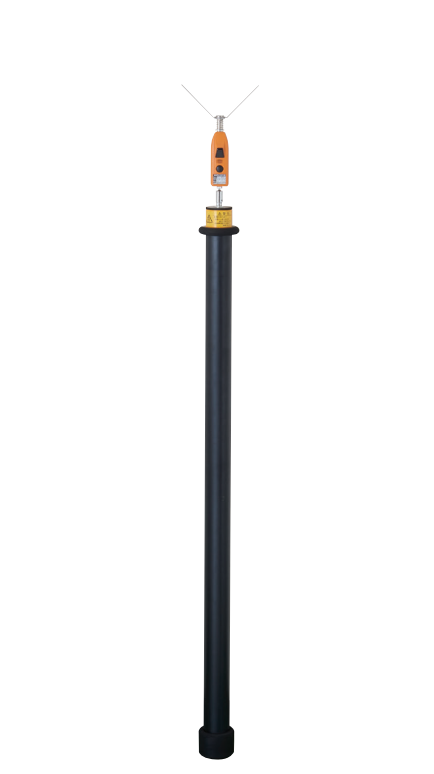

HASEGAWA HST-30L Medium Voltage & High Voltage Detector (AC 3kV～34.5kV)
Manufacturer: HASEGAWA Model: HST-30L Origin: Japan Guarantee: 12 Month - Contact
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222)730.39.68
HCM city: (028) 38.119.636
■ Specifications
Working voltage range: AC: 3kV～34.5kV
Operation starting voltage: AC: 500V±100V
Frequency: 50/60Hz
Dielectric strength:
- on insulating stick AC 75kv/300mm for 1minute. (insulating stick excluding contact tip and joint)
- 1 place
Leakage current: 0.1mA or less during dielectric strength test (1 place)
Battery: LR44(1.5V) × 2 pcs
Life of the battery: About 4 hr. under continuously operating state
Operating temperature range: 10℃～＋50℃
Weight: About 3kg
■ Accessory: Bag for housing (DA14006)
Details

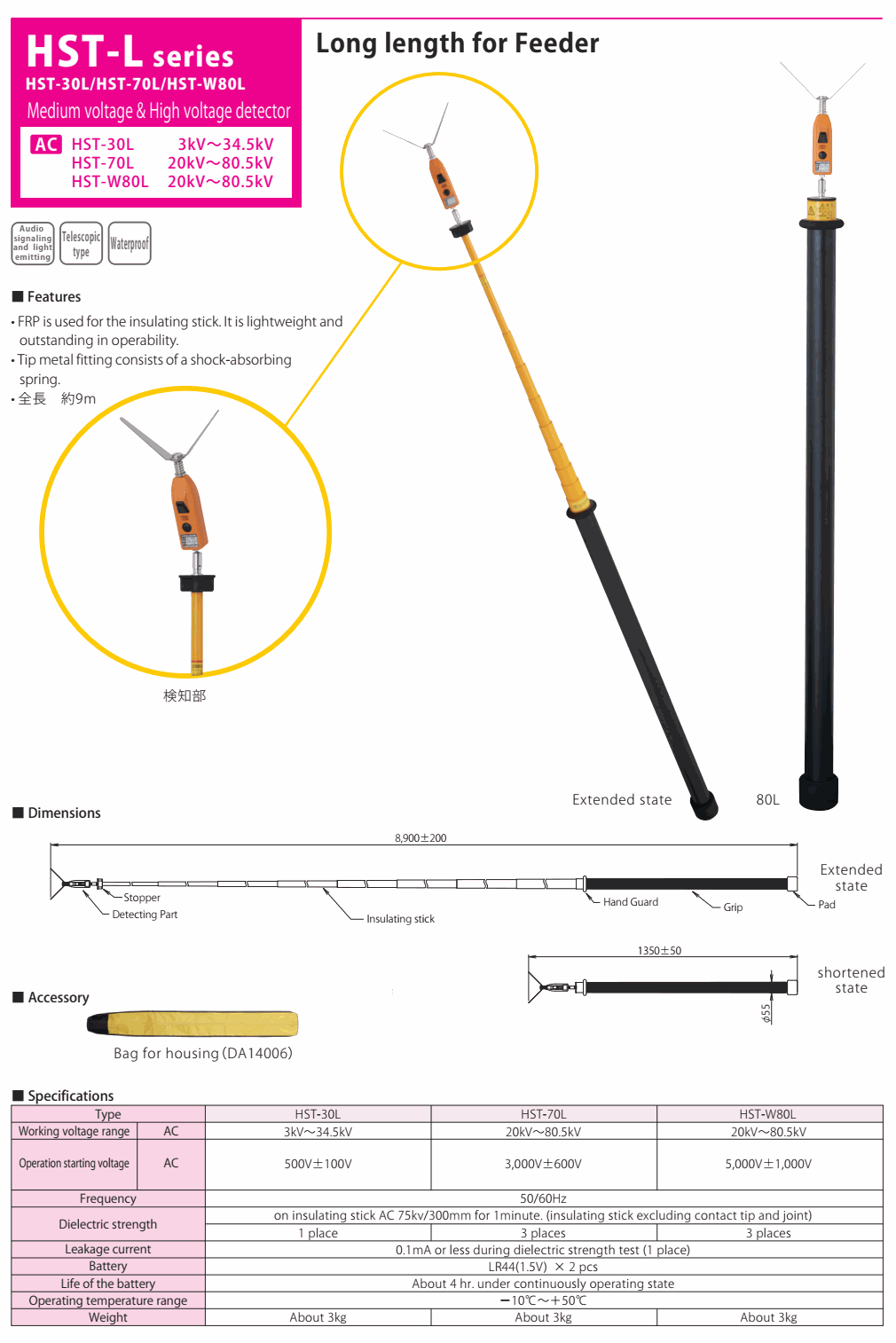

Datasheet
