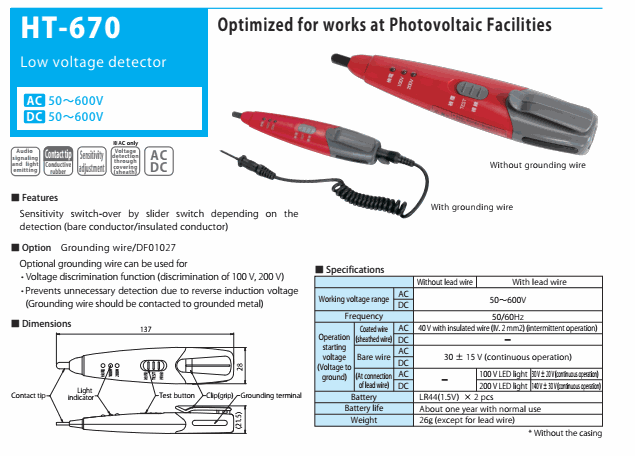

Specifications
Working voltage range:
AC 50V〜600V
DC 50V〜600V
Frequency: 50/60Hz
Operation starting voltage (Voltage to ground):
-Coated wire (sheathed wire):
AC: 40 V with insulated wire (IV. 2 mm2) (intermittent operation)
DC: /
-Bare wire: 30 ± 15 V (continuous operation)
-At connection of lead wire:
AC: 100 V LED light: 30 V ± 20 V (continuous operation)
DC: 200 V LED light: 140 V ± 30 V (continuous operation
Battery: LR44(1.5V) × 2 pcs
Battery life: About one year with normal use
Weight: 26g (except for lead wire)
* Without the casing
Features
Sensitivity switch-over by slider switch depending on the detection (bare conductor/insulated conductor)
Grounding wire/DF01027
Optional grounding wire can be used for
• Voltage discrimination function (discrimination of 100 V, 200 V)
• Prevents unnecessary detection due to reverse induction voltage (Grounding wire should be contacted to grounded metal)
