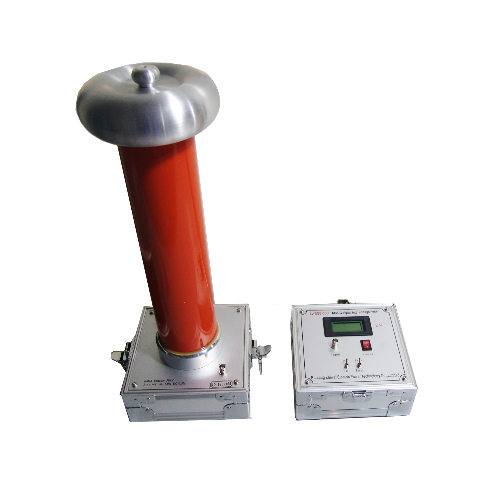

Partial pressure ratio of voltage divider: 1000:1
Insulating medium: dupont dry dielectric
Ac measurement : true effective value measurement
Environmental conditions
Temperature: 0 ~ 40℃
Wet degree: 85% RH or less
Voltage level: AC：300kV, DC：300kV
Accuracy: AC：1.5%; DC：1.0%
Measurement range: Low：0-20kV, High：0-300kV
Resistance（MΩ）: 3600
Signal Wire Length: 5m
Dimension（mm3）: 250*250*1900
Weight（kg）: 22
