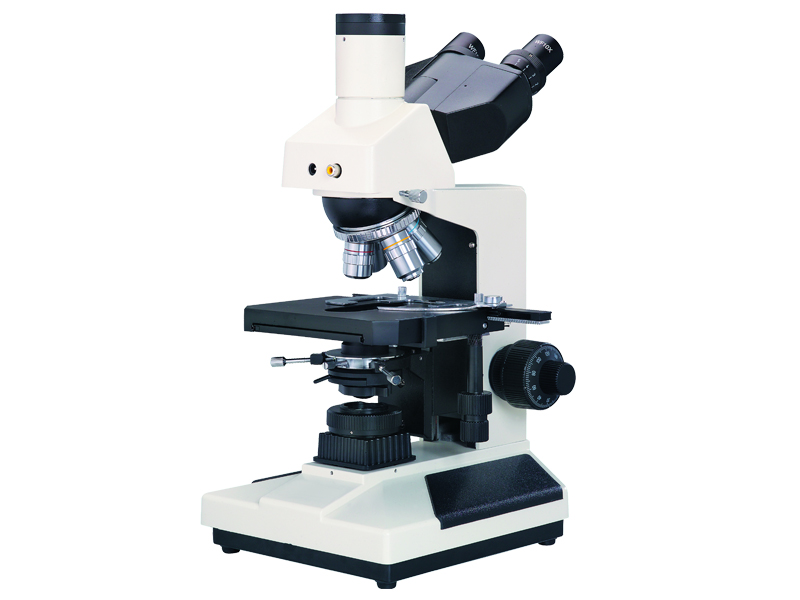

HINOTEK L2080 Video Biological Microscopes (4X-100X)

Eyepiece: WF10X(Φ20mm)

Objective: Plan achromatic PL 4X/0.10; Plan achromatic PL 10X/0.25; Plan achromatic PL 40X/0.65(Spring); Plan achromatic PL 100X/1.25(Spring, oil)

Video trinocular: Built-in clear color 1/3”CCD sensor, horizontal resolution:520TV lines

White Balance: Automatic, Color. Video output: 1Vp-p/75ΩNTSC/PAL(optional). Power supply adapter: 12V DC

Focus system: Coaxial coarse/fine focus, with tensional adjustable and up stop, minimum division of fine focusing: 2μm.

Nosepiece: Quadruple(Backward ball bearing inner locating)

Stage: Double layer mechanical ( Size:160mmX140mm, Move range: 75mmX50mm)

Abbe condenser: N.A.1.25 Rack & pinion adjustable

Filter: Blue filter; Frosted filter

Light source: 6V 20W halogen lamp with brightness control

Attachment: Video cable, length: 1.8M
