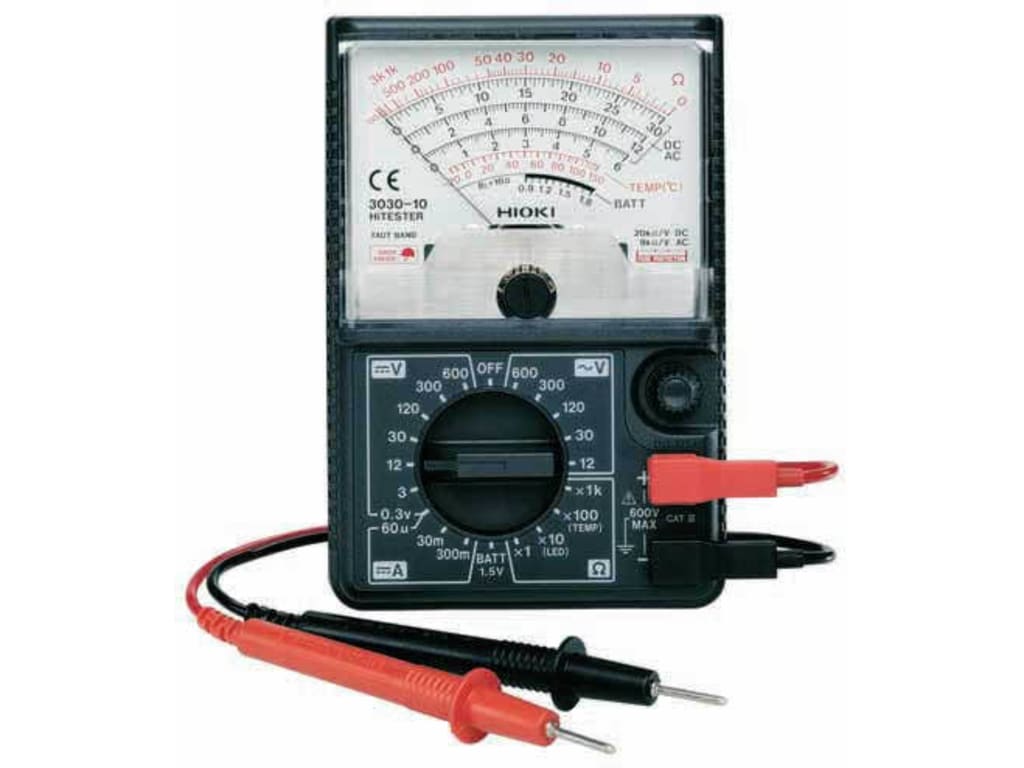

HIOKI 3030-10 analog multimeter

DC Voltage range :    0.3 V (16.7 k-ohm/V), 3/12/30/120/300/600 V (20 k-ohm/V)
Accuracy: ±2.5 % f.s. Max. rated voltage: 600 V
AC Voltage range : 12 V (9 k-ohm/V) Accuracy: ±4 % f.s.
30/120/300/600 V (9 k-ohm/V) Accuracy: ±2.5 % f.s.
Average rectifier effective value Max. rated voltage: 600 V
DC Current range : 60 µA/30 m/300 mA (300 mV internal voltage drop)
Accuracy: ±3 % f.s.
Resistance range : 0 to 3 k-ohm (center scale 30 ohm), R × 1, R × 10, R × 100, R × 1 k
Accuracy: ±3 % of scale length
Battery check : 0.9 to 1.8 V, load resistance 10 ohm, Accuracy: ±6 % f.s.
Temperature scale : -20 to 150°C, Use with R ×100 range (Thermister Temperature Probe 9021-01 is necessary, sold separately), Accuracy: ±3 % of scale length
Power supply : For resistance measurement range, R6P (AA) × 2 batteries
Dimensions, mass :    95 mm(3.74 in)W × 141 mm(5.55 in)H × 39 mm(1.54 in)D, 280 g (9.9 oz)
Supplied accessories : TEST LEAD×1, Spare fuse×1, Manganese batteries (R6P)×2, Instruction Manual×1, CARRYING CASE 9390×1

Details



DC Voltage range 0.3 V (16.7 k-ohm/V), 3/12/30/120/300/600 V (20 k-ohm/V)
Accuracy: ±2.5 % f.s. Max. rated voltage: 600 V
AC Voltage range 12 V (9 k-ohm/V) Accuracy: ±4 % f.s.
30/120/300/600 V (9 k-ohm/V) Accuracy: ±2.5 % f.s.
Average rectifier effective value Max. rated voltage: 600 V
DC Current range 60 µA/30 m/300 mA (300 mV internal voltage drop)
Accuracy: ±3 % f.s.
Resistance range 0 to 3 k-ohm (center scale 30 ohm), R × 1, R × 10, R × 100, R × 1 k
Accuracy: ±3 % of scale length
Battery check 0.9 to 1.8 V, load resistance 10 ohm, Accuracy: ±6 % f.s.
Temperature scale -20 to 150°C, Use with R ×100 range (Thermister Temperature Probe 9021-01 is necessary, sold separately), Accuracy: ±3 % of scale length
Power supply For resistance measurement range, R6P (AA) × 2 batteries
Dimensions, mass 95 mm(3.74 in)W × 141 mm(5.55 in)H × 39 mm(1.54 in)D, 280 g (9.9 oz)
Supplied accessories TEST LEAD×1, Spare fuse×1, Manganese batteries (R6P)×2, Instruction Manual×1, CARRYING CASE 9390×1

pdficon DIGITAL / ANALOG HiTESTER SERIES
product catalog.pdf (1.80 MB) (2012-07-03 updated)
