Specifications
DC Voltage range: 419.9 mV to 500 V, 5 ranges, Basic accuracy: ±0.7 % rdg. ±4 dgt.
AC Voltage range: 4.199 V to 500 V, 4 ranges, Basic accuracy 50 - 500 Hz : ±2.3 % rdg. ±8 dgt. (Average rectified)
Resistance range: 419.9 Ω to 41.99 MΩ, 6 ranges, Basic accuracy: ±2.0 % rdg. ±4 dgt.
Continuity buzzer: Detection level 50 Ω ±40 Ω, Diode check: Not available
Auto power save: Available (cancel selectable)
Display: Digital LCD, max. 4199 digits
Sampling rate: 2.5 times/sec
Power supply: Coin type lithium battery (CR2032) ×1, Continuous use: 150 hours
Dimensions and mass: 55 mm (2.17 in) W × 109 mm (4.29 in) H × 9.5 mm (0.37 in) D, 60 g (2.1 oz)
Included accessories: Instruction manual ×1, Carrying case ×1, Coin type lithium battery (CR2032) ×1 (for trial purposes only), Sleeves (Red/ Black each 1)
Features

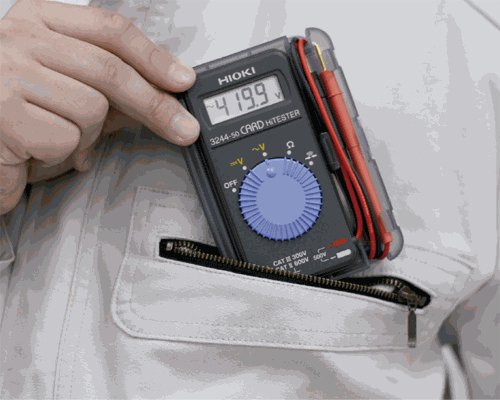

Card-size tester that’s easy to use in the field
Thanks to a compact design that’s less than 1 cm thick, this instrument is easy to carry and a breeze to use.

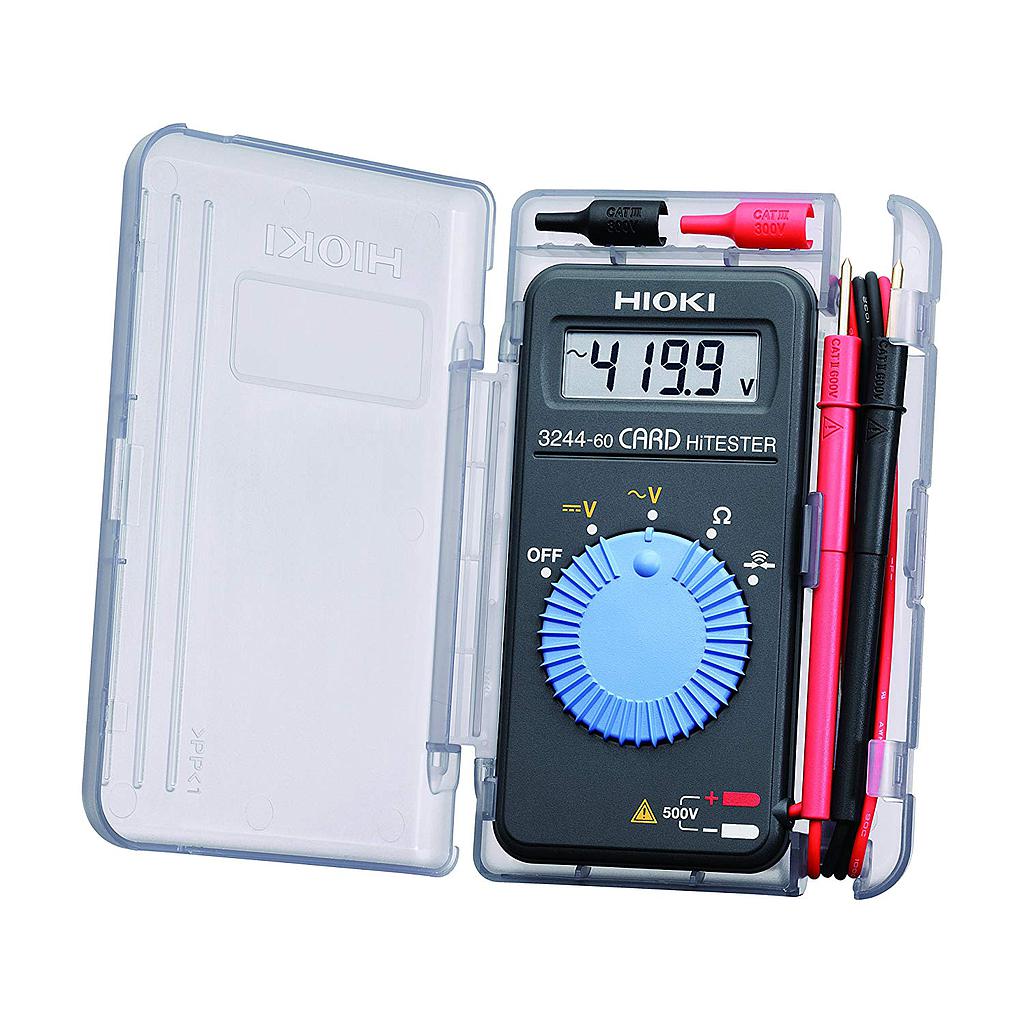

Included hard case for tidy storage
The instrument’s test leads can be wound up and stowed in this hard case. Dimensions: Approx. 80 (W) × 116 (H) × 17 (D) mm

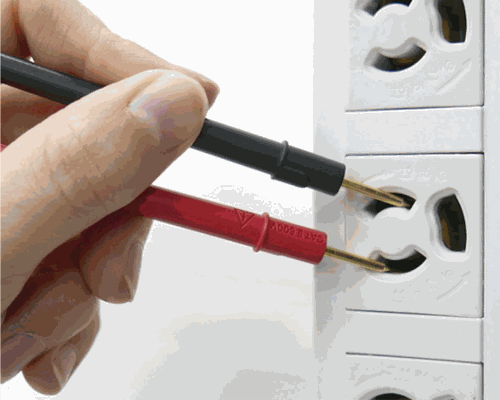

CAT III (300 V) safety

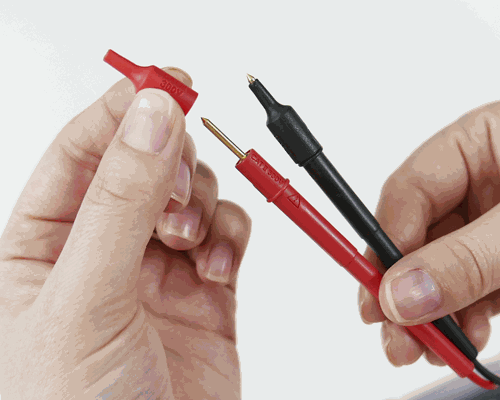

This card tester can perform measurement safely at a high measurement category. It also includes a cap designed to prevent short-circuits.

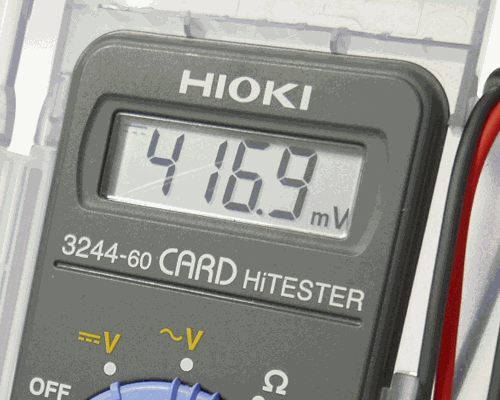

Tester with a simple, easy-to-read display
A simple display with large text ensures measured values are easy to read.
