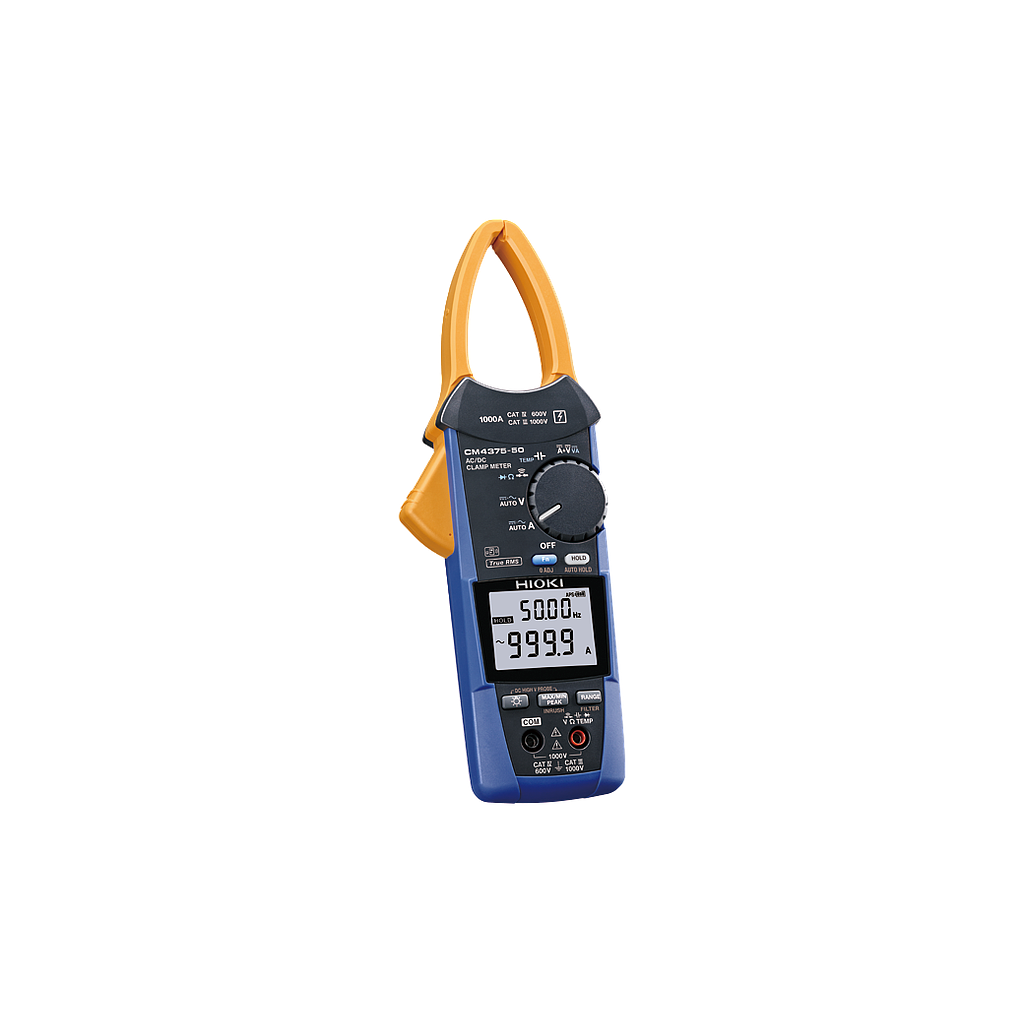

HIOKI CM4375-50 AC/DC Clamp Meter (True RMS, 1000A AC/DC)

DC Current range: 1000 A, (Max. display 999.9 A) , Basic accuracy: ±1.3% rdg. ±0.3 A (at 30.1 A - 999.9 A)

AC Current range: 1000 A (Max. display 999.9 A, 10 Hz to 1 kHz, True RMS), Basic accuracy 45-66 Hz: ±1.3% rdg. ±0.3 A (at 30.1 A - 900.0 A)

Crest factor: 1.5

DC+AC Current range: 1000 A (DC, 10 Hz to 1 kHz, True RMS), Basic accuracy DC, 45-66 Hz: ±1.3% rdg. ±1.3 A (at 30.1 A - 900.0 A)

DC Power range: 0.0 VA to 1700 kVA (Automatically switched based on voltage range), Basic accuracy: ±2.0% rdg. ±20 dgt.

DC Voltage range: 600.0 mV to 1700 V (*1), 5 ranges, Basic accuracy: ±0.5% rdg. ±0.5 mV (at 600 mV)

AC Voltage range: 6.000 V to 1000 V, 5 ranges (15 Hz to 1 kHz, True RMS), Basic accuracy 45 - 66 Hz: ±0.9% rdg. ±0.013 V (at 6 V)

DC+AC Voltage range: 6.000 V to 1000 V, 5 ranges, Basic accuracy DC, 45-66 Hz: ±1.0% rdg. ±0.023 V (at 6 V)

Resistance range: 600.0 Ω to 600.0 kΩ, 4 ranges, Basic accuracy: ±0.7% rdg. ±0.5 Ω (at 600 Ω)

Electrostatic capacity range: 1.000 μF to 1000 μF, 4 ranges, Basic accuracy: ±1.9% rdg. ±0.005 μF (at 1 μF)

Frequency range: 9.999 Hz to 999.9 Hz, 3 ranges, Basic accuracy: ±0.1% rdg. ±0.003 Hz (at 9.999 Hz)

Temperature (K): -40.0°C to 400.0°C, add temperature probe accuracy to basic accuracy of ±0.5% rdg. ±3.0°C

Other functions: Automatic AC/ DC detection, DC current and DC voltage polarity detection function, MAX/ MIN/ AVG/ PEAK MAX/ PEAK MIN value display, Low-pass filter function, Display value hold, Auto hold, Backlight, Auto power save, Buzzer sound, Zero-adjustment

Dustproof, waterproof: IP54 (Storage or measurement of current of an insulated conductor)

Interface: N/A

Power supply: LR03 Alkaline battery ×2, Continuous use: 40 hr (Backlight OFF)

Core jaw diameter: φ34 mm (1.34 in)

Smallest dimension of jaw cross-section: 9.5 mm (0.37 in) (Range value of 44 mm (1.73 in) from the tip of the jaw)

Dimensions and mass: 65 mm (2.56 in) W × 242 mm (9.53 in) H × 35 mm (1.38 in) D mm, 330 g (11.6 oz)

Included accessories: Test Lead L9207-10, Carrying Case C0203, LR03 Alkaline battery ×2, Instruction Manual ×1
