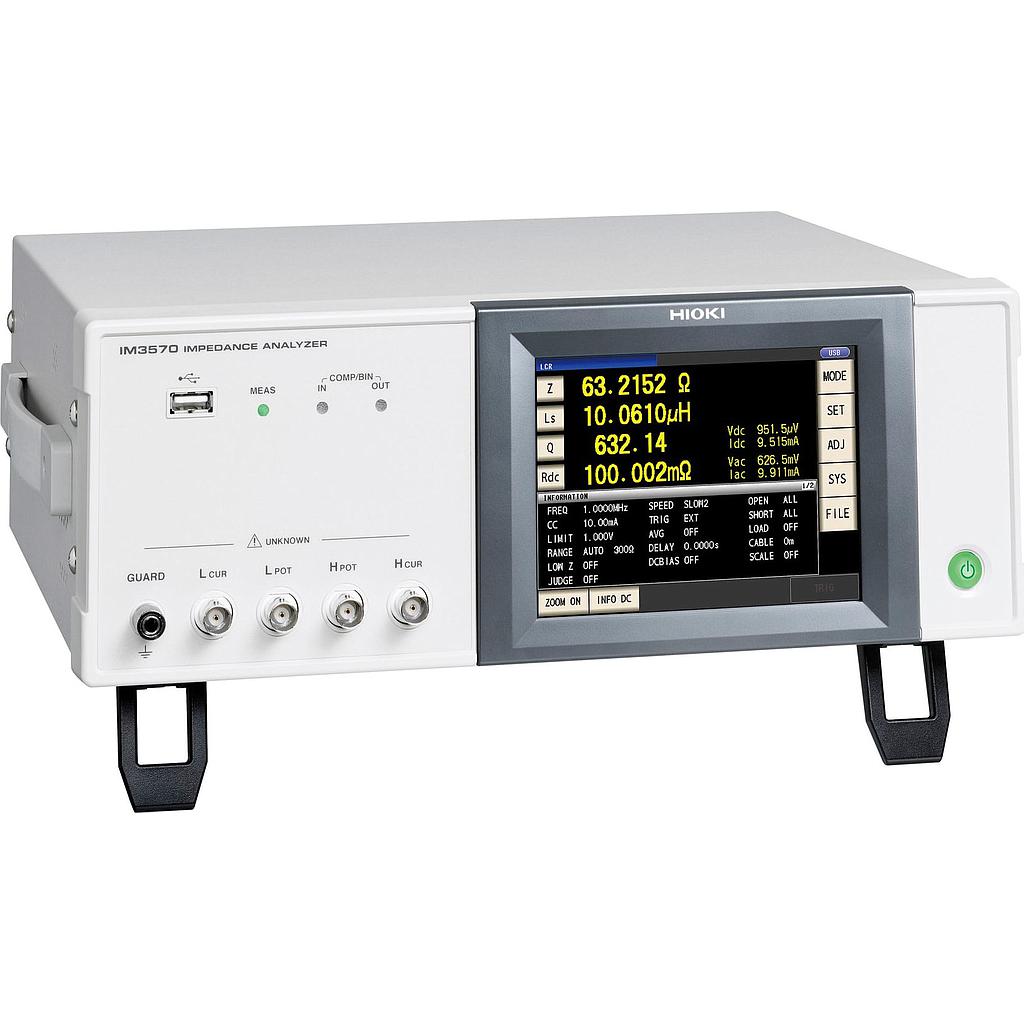

SPECIFICTIONS
- Measurement modes:
+ LCR mode
+ Analyzer mode (Sweeps with measurement frequency and measurement level)
+ Continuous measurement mode
- Measurement parameters:
+ Z, Y, θ, Rs (ESR), Rp, Rdc (DC resistance)
+ X, G, B, Cs, Cp, Ls, Lp, D (tanδ), Q, T, σ (conductivity)
+ ε (dielectric constant)
- Measurement range:
+ 100 mΩ to 100 MΩ, 12 ranges
- Display range:
+ Z, Y, Rs, Rp, Rdc, X, G, B, Ls, Lp, Cs, Cp, σ, ε : ±(0.000000 [unit] to 9.999999G [unit], Absolute value display for Z and Y only
+ θ : ±(0.000° to 999.999°), D : ±(0.000000 to 9.999999)
+ Q : ±(0.00 to 99999.99), Δ % : ±(0.0000% to 999.9999%)
+ T : -10.0°C to 99.9°C
- Basic accuracy: Z : ±0.08%rdg. θ: ±0.05°
- Measurement frequency: 4 Hz to 5 MHz (10 mHz to 100 Hz steps)
- Measurement signal level:
+ Normal mode:
_ V mode/CV mode: 5 mV to 5 Vrms (up to 1 MHz)
_ 10 mV to 1 Vrms (1.0001 MHz to 5 MHz), 1 mVrms steps
_ CC mode: 10 μA to 50 mArms (up to 1 MHz)
_ 10 μA to 10 mArms (1.0001 MHz to 5 MHz), 10 μArms steps
+ Low impedance high accuracy mode:
_ V mode/CV mode: 5 mV to 1 Vrms (up to 100 kHz), 1 mVrms steps
_ CC mode:10 μA to 100 mArms (100 mΩ and 1Ω ranges of up to 100 kHz), 10 μArms steps
- Output impedance:
+ Normal mode: 100 Ω
+ Low impedance high accuracy mode: 10 Ω
- Display: 5.7-inch color TFT, display can be set to ON/OFF
- Measurement time: 0.5 ms (100 kHz, FAST, display OFF, representative value)
- Functions:
+ DC bias measurement, Comparator, BIN measurement (classification)
+ Panel loading/saving, Memory function
- Interface: EXT I/O (Handler), USB communication, USB memory, LAN
- Power supply: 90 to 264 V AC, 50/60 Hz, 150 VA max.
- Dimensions, mass: 330 mm (12.99 in) W × 119 mm (4.69 in) H × 307 mm (12.09 in) D, 5.8 kg (204.6 oz)
- Supplied accessories: Power cord ×1, Instruction Manual ×1, PC communication Instruction Manual (CD-R) ×1
- The warranty period: 12 month
