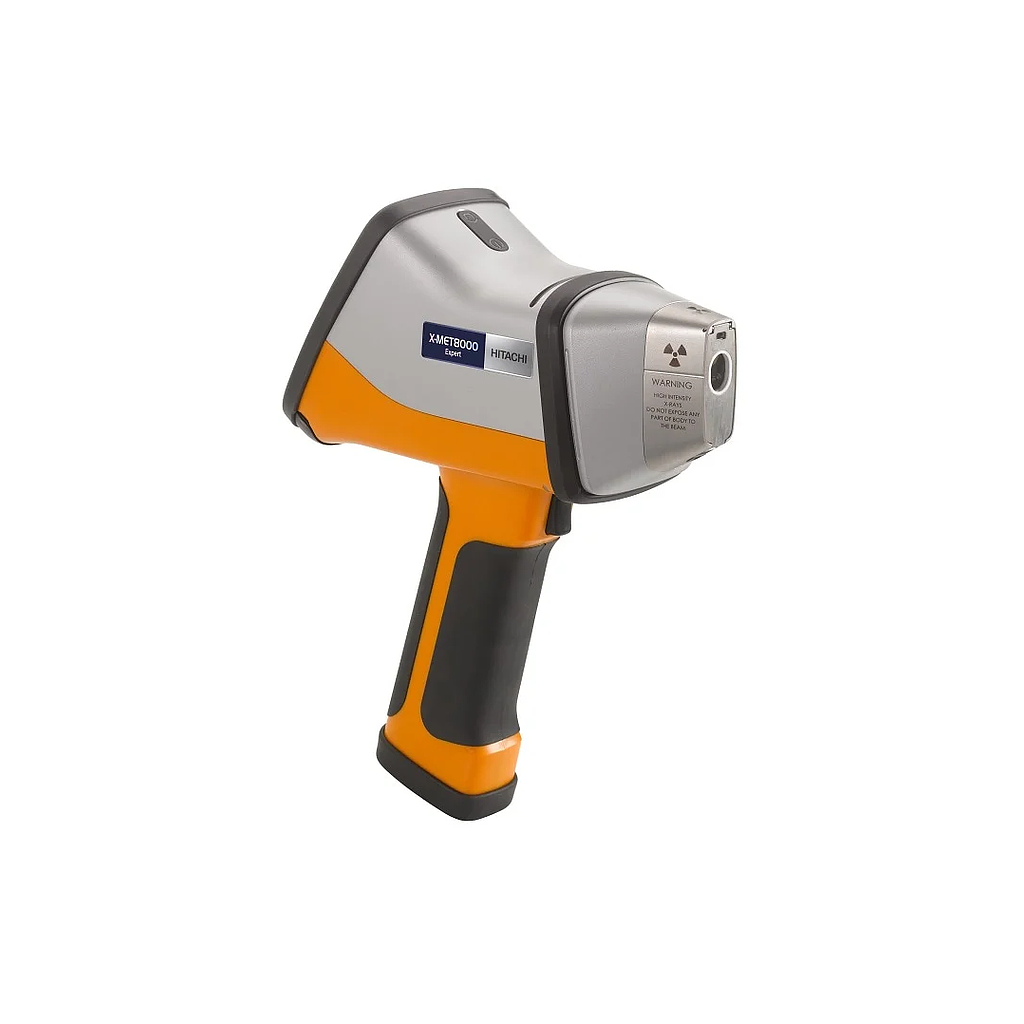

HITACHI X-MET8000 Expert Handheld XRF Analyzer

X-ray Tube: Rh (4W, 50kV, 200μA max.)

Filter System: Automatic 5-position filter changer

Analysis Spot Size: 10.7 mm x 9.4 mm

Operating Temperature: -10 °C to +50 °C

Display and System

Display: 4.3” multi-touch screen

Resolution: 480 (H) x 800 (V) dots

Internal Memory: 16 GB

Storage Capacity: Up to 100,000 results including spectra and images (if camera is equipped)

Connectivity: Bluetooth, WiFi, and USB data transfer

User Interface Languages (13): Traditional & Simplified Chinese, English, Finnish, French, German, Italian, Japanese, Korean, Polish, Portuguese, Spanish, and Russian

Calibration

Optional Calibration: Powerful FP (Fundamental Parameters) factory calibration and empirical calibrations for various applications including metals and precious metals in automotive catalysts

Standard Calibration: RoHS for identification and evaluation of hazardous substances (including Cr, Br, Cd, Pb, Hg) in consumer products, compliant with IEC 62321 regulations of the Consumer Product Safety Commission (CPSC)

Analytical Range

From Mg to U, up to 35 elements depending on application

Battery

Type: Rechargeable, removable compact battery

Specification: 6.2Ah Li-ion (Quantity: 2)

Battery Life: Up to 10–12 hours

Charger: 110 / 230V, 50/60 Hz

Radiation Safety

Password protection

Proximity sensor: Infrared

Count rate sensor

Warning indicator: Unsafe condition alert light

Storage and Transport

Carrying Case: Waterproof with compartments for main unit and accessories

Case Dimensions: 415 mm (L) x 325 mm (W) x 170 mm (H)

Strap: Shoulder/neck strap (optional)

Optional: Leather case and strap

Integrated Camera (Optional)

For precise positioning on the sample

Images: Can be saved, viewed on the X-MET screen, and added to reports

Magnification: X6

Image Size: 640 x 480 pixels

Field of View: Approx. 7.5 mm x 6 mm

Camera Technology: CMOS

Integrated GPS Receiver (Optional)

Collects and stores location coordinates with analysis results

Accuracy: 3.0 m CEP

Communication Ports

USB: 2.0

Bluetooth: 2.0 (EDR)

WiFi: 802.11 b/g
