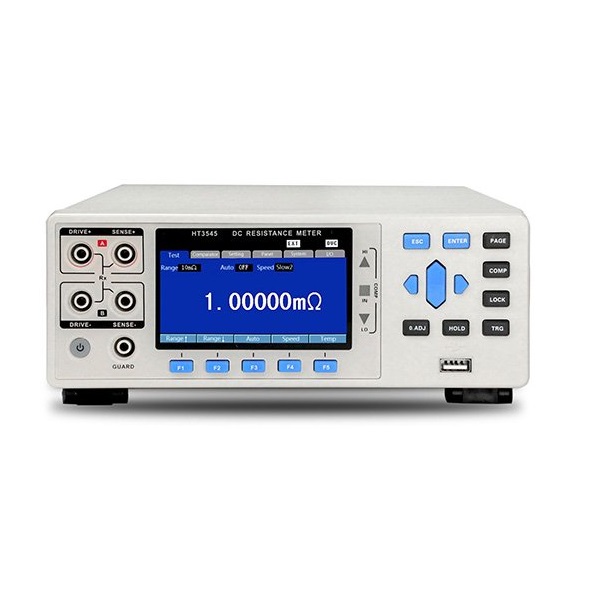

Hopetech HT3545 High Speed High Precision DC Resistance Meter (10~1000ΜΩ; 0.01%; Anlog/LAN/RS-232/ I/O)

Display: 3.5 inch TFT-LCD

Measurement parameters: DC resistance

Resolution: 0.01μΩ

Test scope: [LP OFF] ranges from10mΩ~1000MΩ,12 ranges

                   [LP ON] ranges from 1000mΩ~1000Ω,4 ranges

Measuring current: Less than DC 1A~1μA[LP ON ]DC 1mA~5μA

Measuring accuracy: ±0.01%rdg.±0.001%f.s.

Measuring speed: FAST(2.2ms), MED(50Hz:21ms,60Hz:18ms), SLOW1(102ms),SLOW2(202ms)

Measurement range: 10mΩ / 100mΩ / 1000mΩ / 10Ω / 100Ω / 1000Ω / 10kΩ / 100kΩ / 1000kΩ / 10MΩ / 100ΜΩ / 1000ΜΩ

Signal source: 1A DC, Max:5.5V

Temperature range: Range:-10℃~99.9℃; Accuracy:± 0.50℃

Humidity range: 23℃, less than 80RH

Calibration: Short-circuit reset for all ranges

Comparator: 10-bin sorting, output signal HIGH/IN/LOW

Data storage: Support with PC software and store in PC

Trigger: Internal, manual, bus trigger

Other: Test lead anomaly detection

Interface: External IO, Anlog, LAN, RS-232

Power supply: Voltage:100VAC～256VAC; Frequency: 50Hz～60Hz; Rated power:15VA

Size & weight: 325mm*215mm*96.5mm(L*W*H) 2kg

Included accessories: HT9348 temperature probe, PB36 connector, HT9344 test clip, HT9800 communication cable, power cord
