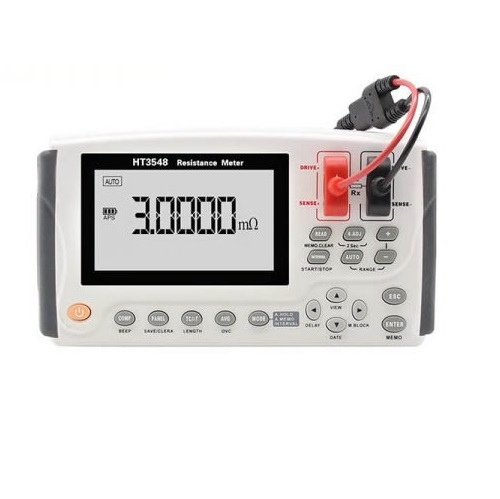

Hopetech HT3548 Portable Resistance Tester (0.1uΩ~3.3MΩ; 0.02%; USB)

Display: 4.3 inch  VFD display

Measurement items: ESR, temperature

Basic accuracy: 0.1%±10 reading (3mΩ,30mΩ,3MΩ); 0.05%±4 readings;0.02%±2 readings(the other ranges)

Measurement range: 3mΩ / 30mΩ / 300mΩ / 3Ω / 30Ω / 300Ω / 3kΩ / 30kΩ / 300kΩ / 3MΩ

Measurement speed: 5 meas/sec

Maximum test current: 1A DC

Temperature range: -10°C ~60°C Accuracy:±1°C

Correction: short-circuit reset for all ranges

Comparator: HIGN/IN/LOW sorting

Internal data storage: Store up to 2400 test data

Trigger: Internal/auto trigger

Signal source: AC 1kHz, Test current: <150mA

Resolution: 0.1μΩ

Other functions: OVC, length conversion function, temperature correction

Interface: USB, external

Power supply: 12V/1700mAh lithium battery, AA (LR6) Alkaline Batteries x 8

Rated power: 2.5W

Dimensions: 208 mm (L) x120mm (W) x 52mm (D),without sleeve

Weight: 0.81kg

Accessory: Standard: HT9363-B test probe,HT9348,power cord,12.6V charger, lithium battery
