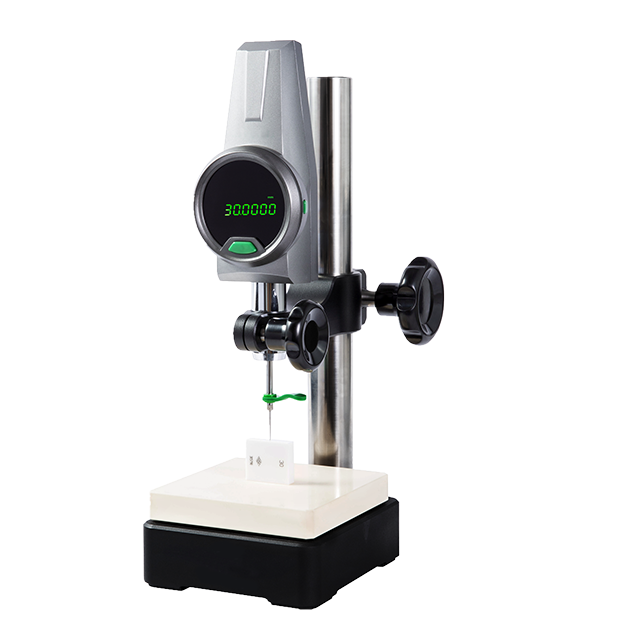

Measurement Range: 0-100mm
Accuracy: ≤3um
Minimum: 0.1μm、1μm(Switchable)
Measurement Speed: Maximum 5000mm/s
Force: 1.0-1.5N
External Output: Data Interface、USB
Display: 8 Bit Green High Brightness LED Display
Probe: Spherical Probe, Flat Probe, Needle Probe
Unit: mm、inch( Convertible )
Operating Environment: Temperature：0-40°C Humidity：20-80%
Measuring Table: 130mmx130mm Ceramic
Power Adapter: Input：AC100-240V50/60HZ Output：DC5V/1A
Standard Accessories: ceramic Table，Spherical Probe, Flat Probe, Needle Probe
Optional Accessories: Special-shaped Probe, Low Force Measuring Device, Data Transmission Software, Power bank, Foot Switch
Dimension: 200x138x397mm
Weight: 11.7kg
Production Feature：
High Accuracy≤1um,High Resolution 0.01um
Height、Depth、Thickness、Flatness Measurement
Steps and Deep Hole Measuring
Reset from Anywhere
Replaceable Probe
8-digit highlight LED digital display device
Wired Data Output
Optional power bank
Stable and Hard-Wearing Cast Iron Base
High Accuracy Ceramic Measuring Table
