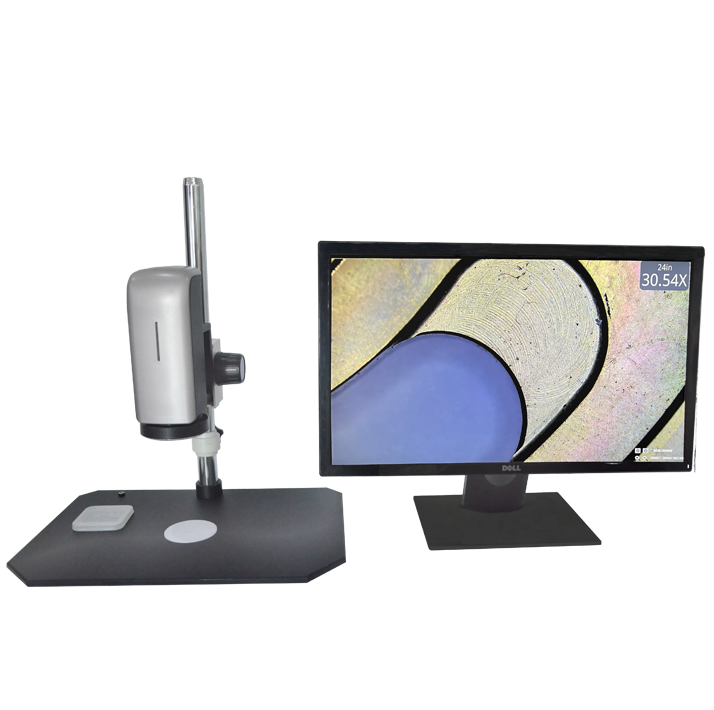

Hoyamo VM-300T Autofocus Vision And Measuring Microscope (27X-163X)

HD Optical System:

Magnification: 27X-163X Stepless electric zoom

FOV Field of view: 17.8mmx10.2mm - 3.5mmx1.9mm

Working Distance: 110mm

Sensor: HDMI Output, 1/2.8"color COMS Camera

Monitor: Dell 21.5 inch HDMI LCD Monitor, resolution: 1920x1080 (Optional customized size)

Illumination: Magnetic ring light source, Adjustable brightness, Light naturally has no flicker; Optional polarization, transmission or oblique light source

Control Method: Mouse / Keyboard / Foot-switch / Other customized 1/0

Function: Auto-focus/Automatic zoom/Measurement/Custom template/Online annotation / Data image storage

Working Stand:

LWH: 450*308*530mm, Measuring effective range: 190mm,

Lifting range 300mm, Hand wheel focus,With transmitted light source (Optional universal stand, customizable)

Storage: U Disk Storage Picture Video Data

Power: DC12V
