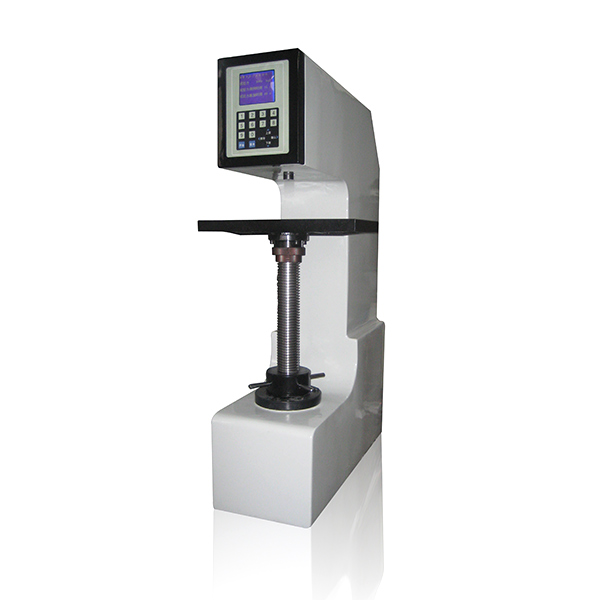

HST HB-3000D BRINELL HARDNESS TESTER (3000kgf)

Application: It's suitable to determine the Brinell hardness of unquenched steel,cast iron, non-ferrous metals and soft bearing alloys, etc.

Measuring Range: 8-650HBW

Test Force: 612.9, 980.7, 1225.9, 1838.8, 2451.8, 7355.3, 9807, 14710.5, 29421N. (62.5, 100, 125, 187.5, 250, 750, 1000, 1500, 3000kgf)

Diameter Of Tungsten Carbide Ball: 2.5mm, 5mm, 10mm

Dwelling Time Of Test Force: 2-99s

Max. Height Of Test Piece: 390mm

Depth Of Throat: 200mm

Power Supply: 220V AC or 110V AC, 50 or 60Hz

Dimensions: 860x680x1250mm

Height Of Base: 400mm

Weight: Approx. 400kg
