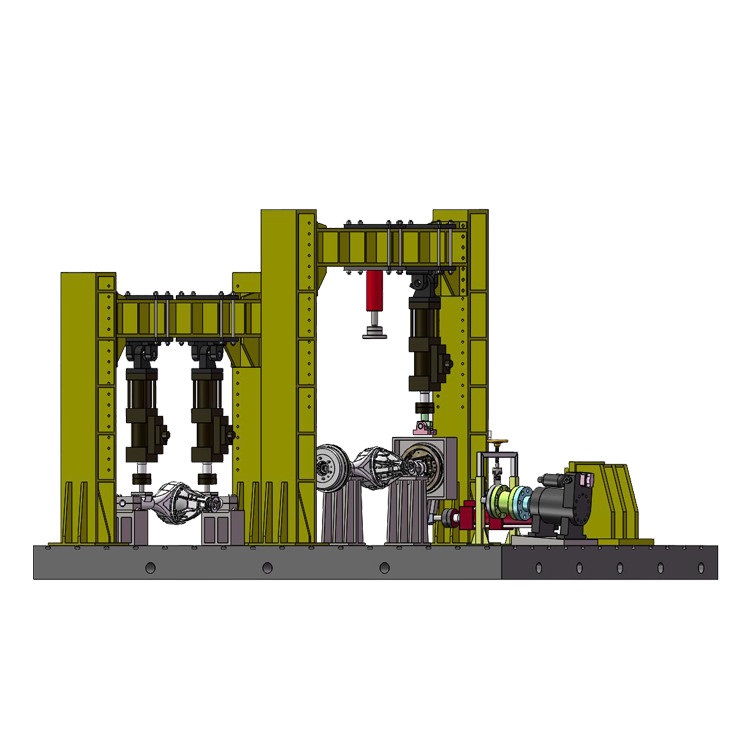

HST HSTPLW-1000 Electro-hydraulic servo trailer suspension Test System (±1000kN)

1: 1000kN

Maximum static test force of actuator: ±1000kN

2: 250kN

Maximum static test force of actuator: ±250kN

3: 150kN

Maximum static test force of actuator: ±150kN

4: The precision range of static test force indicator: 2%-100%FS

5: Static test force value precision: ≤±1%

6: 1000kN

The maximum amplitude of the actuator: ±150mm

7: 250kN

The maximum amplitude of the actuator: ±125mm

8: 150kN

The maximum amplitude of the actuator: ±125mm

9: Precision of amplitude indicator: From 20% ≤±0.5%FS

10: Controller frequency range: 0.01－30Hz

11: Main test waveform: Sine wave, triangle wave, square wave, half sine wave, half triangle wave, half square wave, oblique wave and user-defined wave, etc

12: Control mode: Force or displacement control

13: Pump specifications: 3*200L/min,21MPa,   3*90kW,AC（three-phase supply），380V
