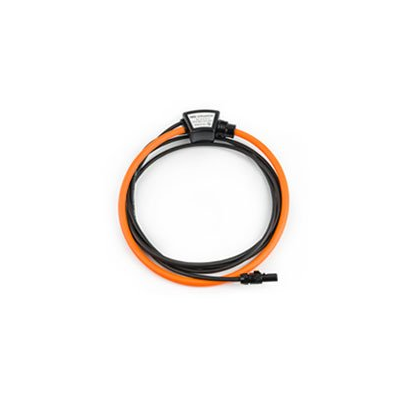

HT HTFLEX35E FLEXIBLE CLAMP FOR AC CURRENT (3000A ACRMS, 85mVAC)

Measurement range: 3000A ACRMS

Output signal (@ 1000ARMS, 50Hz): 85mV AC

Input impedance: 236Ω ± 23Ω

Output impedance: 399.2Ω

Accuracy (at 25°C): ± 0.5%rdg (45 ÷ 65Hz)

Linearity (from 10% to 100% of range): ± 0.2% rdg

Frequency range: 10Hz ÷ 20kHz

Phase error: < ± 1° (45 ÷ 65Hz)

Position sensitivity: ± 2% rdg

Noise: 1mV ACRMS

Overvoltage category CAT III 1000V ACRMS Phase- Earth

Insulation: double insulation

Pollution degree: 2 according to IEC/EN610101-1

Flexible clamp length (double insulation): 900 mm

Maximum conductor diameter: 274 mm

Instrument connection cable length: 2m (double insulation)

Output connection: 2m cables with Hypertac connectors

Operating temperature: -20°C ÷ 80°C

Storage temperature: -40°C ÷ 90°C

Temperature coefficient: ± 0.05 % rdg per °K

Operating humidity 15% ÷ 85% H.R. without condense

Mechanical protection: IP65

Safety: EN 61010-1: 1993 + A2:1995

EMC: EN 61326 :1997 + A1 :1998
