Detailed Product Description

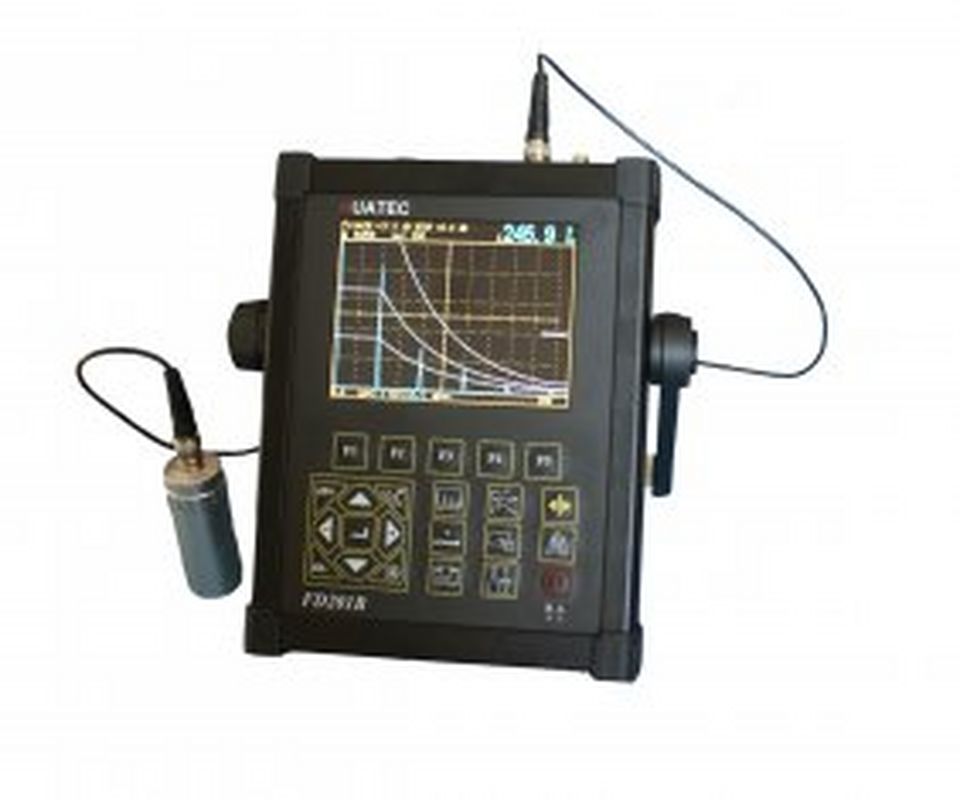

Features for digital ultrasonic flaw detector FD201B:
DAC, AVG curves
AWS function
High-speed capture and very low noise
Gate and DAC alarm;Acoustic-Optical alarm
Solid metal housing (IP65)
High contrast viewing of the waveform from bright
Powerful pc software and reports can be export to excel
Automated display precise flaw location (Depth d, level p, distance s, amplitude, sz dB, ф)
Automated switch three staff gauge ((Depth d, level p, distance s)
Convenient to make and use DAC and AVG to evaluate the echo, the curve can be modified and compensated
Ten independence setup, any criterion can be input freely, we can work in the scene without test block
Big memory of 300 A graph and 30000 thickness value
Automated gain and gain scan, automated echo degree
Peak hold and Peak memory
Powerful PC software and reports can be export to excel
RS232/USB
The embeded software can be online updated
Li battery, continue working time up to 10 hours
Display freeze
Lock and unlock function of system parameters
Dormancy and screen savers
Electronic clock calendar
Two gates setting and alarm indication
Specifications
Measuring Range(mm): 2.5 - 5000
Vertical Linearity Error: ≤3%
Horizontal Linearity Error: ≤0.2%
Sensitivity Leavings: > 60dB
Dynamic range: >32dB
Resolving Power: ≥40
Frequency Range(MHz): 0.5 ~ 15
Gain(dB): 0 ~ 110
Material Velocity(m/s): 1000 ~ 9999
H×W×D(mm): 240×180×50
Weight(kg): 1.8
Measurement Mode: Single, Dual, Thru
Reject: 0~80%
Pulse Displacement (μs): -20 ~ +3400
Zero(μs): 0.0 ~ 99.99
Port Type: BNC
Operating Temperature : -20～50 oC
Standard delivery:
Digital Ultrasonic Flaw Detector Main unit,2.5MHz-ф20 straight probe
4MHz-8x9mm, 60 degree angle probe, 4A/9V power adapter, Probe connection cable (BNC to BNC), Probe connection cable (BNC to LEMO),USB2.0 –RS232 converter, Instruction manual
Calibration certificate,Carrying case
Option Additional accessories
Data managing software
Data managing cable RS232
Leather bag
All kinds of angle and straight probe, double crystal probe at any size with frequency 0.5—15MHz
Connection cable for probe LEMO and BNC
Lithium ion battery
Power adapter (4A/9V)
Test block V1
Test block V2
Test block DAC, ASME etc.
