Specification:
Title | Parameter | Title | Parameter |
Measuring Range(mm) | 2.5～ 10000 | Measurement Mode | Single,Dual,Thru |
Vertical Linearity Error | ≤3% | Reject | 0~80% |
Horizontal Linearity Error | ≤0.1% | Pulse Displacement(μs) | -20～ +3400 |
Sensitivity Leavings | ≥62dB | Zero(μs) | 0.0～ 99.99 |
Dynamic range | ≥34dB | Port Type | BNC |
Resolving Power | ≥36dB | Operating Temperature (℃) | -20～50 |
Frequency Range(MHz) | 0.5～ 20 | H×W×D(mm) | 210×156×40 |
Gain(dB) | 0～ 110 | Weight(kg) | 1.0 |
Material Velocity(m/s) | 1000～ 13000 |
|
|
Sandard Delivery:

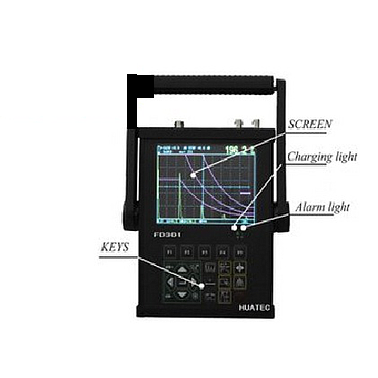

Main unit
2.5MHZ-ф20 straight probe
4MHZ-8x9mm, 60degree angle probe
4A/9Vpower adapter
Probe connection cable (BNC to Lemo 01)
Probe connection cable (BNC to Lemo 00)
Instruction manual
Carrying case
Additional Accessories:
Data managing software
Data managing cables RS232
Straight probe (5MHZ-ф20)
Straight probe (2.5MHZ-ф20)
Straight probe (2.25MHZ-ф20)
Straight probe (1MHZ-ф20)
Angle probe (4MHZ-45degree, 8*9mm)
Angle probe (4MHZ-60degree, 8*9mm)
Angle probe (4MHZ-70degree, 8*9mm)
Angle probe (4MHZ-80degree, 8*9mm)
Angle probe (2MHZ-45degree, 8*9mm)
Angle probe (2MHZ-60degree, 8*9mm)
Angle probe (2MHZ-70degree, 8*9mm)
Angle probe (2MHZ-80degree, 8*9mm)
Probe T/R (5MHz-ф20mm, focus 15mm)
Probe T/R (2.5MHz-ф20mm, focus 15mm)
Connection cable to probe (BNC-BNC)
Connection cable to probe (BNC-Lemo 00)
Connection cable to probe (Lemo 01-BNC)
Connection cable to probe Lemo 00-Lemo 01)
Lithium ion battery
Power adapter (4A/9V)
Power Cable
Leather case
Specification :
|
Title
|
Parameter
|
Title
|
Parameter
|
|
Measuring Range(mm)
|
2.5 ～ 10000
|
Measurement Mode
|
Single, Dual, Thru
|
|
Vertical Linearity Error
|
≤3%
|
Reject
|
0~80%
|
|
Horizontal Linearity Error
|
≤0.1%
|
Pulse Displacement(μs)
|
-20 ～ +3400
|
|
Sensitivity Leavings
|
≥62dB
|
Zero(μs)
|
0.0 ～ 99.99
|
|
Dynamic range
|
≥34dB
|
Port Type
|
BNC
|
|
Resolving Power
|
≥36dB
|
Operating Temperature (℃)
|
-20～50
|
|
Frequency Range(MHz)
|
0.5 ～ 20
|
H×W×D(mm)
|
210×156×40
|
|
Gain(dB)
|
0 ～ 110
|
Weight(kg)
|
1.0
|
|
Material Velocity(m/s)
|
1000 ～ 13000
|
|
|
Sandard Delivery:
Main unit
2.5MHZ-ф20 straight probe
4MHZ-8x9mm, 60degree angle probe
4A/9Vpower adapter
Probe connection cable (BNC to Lemo 01)
Probe connection cable (BNC to Lemo 00)
Instruction manual
Carrying case
Additional Accessories:
Data managing software
Data managing cables RS232
Straight probe (5MHZ-ф20)
Straight probe (2.5MHZ-ф20)
Straight probe (2.25MHZ-ф20)
Straight probe (1MHZ-ф20)
Angle probe (4MHZ-45degree, 8*9mm)
Angle probe (4MHZ-60degree, 8*9mm)
Angle probe (4MHZ-70degree, 8*9mm)
Angle probe (4MHZ-80degree, 8*9mm)
Angle probe (2MHZ-45degree, 8*9mm)
Angle probe (2MHZ-60degree, 8*9mm)
Angle probe (2MHZ-70degree, 8*9mm)
Angle probe (2MHZ-80degree, 8*9mm)
Probe T/R (5MHz-ф20mm, focus 15mm)
Probe T/R (2.5MHz-ф20mm, focus 15mm)
Connection cable to probe (BNC-BNC)
Connection cable to probe (BNC-Lemo 00)
Connection cable to probe (Lemo 01-BNC)
Connection cable to probe Lemo 00-Lemo 01)
Lithium ion battery
Power adapter (4A/9V)
Power Cable
Leather case
