Specifications
Range: 0~100HBa, Amount to 25~150HBW
Resolution: 0.1HBa
Indication Error: 81~88HBa ±1HBa; 42~48HBa ±2Hba
Repeatability Error: 81~88HBa ±1.5HBa; 42~48HBa ±2.5HBa
Maximum Hold: √
Operating Condition Temperature: 0~50°C
Humidity: <80%RH
Power Supply: 2 x 1.5 V AAA (UM-4) Battery
Weight: 390g (Not Including Batteries)
Standard Accessories :

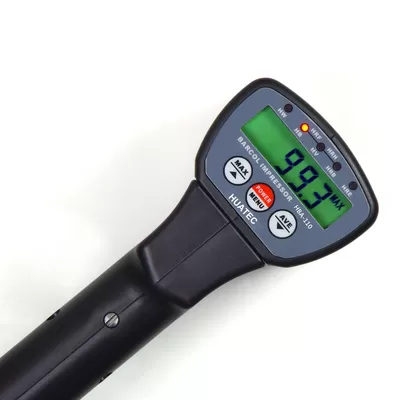

1. Main Unit HBA-110
2. 2 Pins
3. 2 Standard Blocks
4. Pin Length Calibration Block
5. Screw Driver
6. Spanner
7. Carrying Case
8. Operation Manual
Features:
* It is characterized in that provided with a balance positioning, a digital display of hardness value, and a non disassembly calibration and adjusting.* A digital indentation hardness tester which is the latest design and development of our company.
* It is with good stability, convenient calibration, and high accuracy of detection.
* Small in size, portable. single hand operation, easy to use. Can be used in any occasion as long as the hand can reach.
* Wide test range can test from very soft pure aluminum to a particularly hard aluminum alloy. effective test range equivalent to the Brinell Hardness of 25~150HB.
* No need to be supported. Just test on one side of the sample with the hardness tester, no need to be supported. It is suitable for the test of large and extra thick workpiece.
* With the maximum hold function, recording the maximum hardness value during measurements.
* Can be used for measuring Barcol Hardness, other hardness value can be calculated out by the experimental curve. Such as Brinell Hardness (HB), Vickers Hardness (HV), Webster Hardness (HW), Rockwell Hardness (HRB/HRE/HRF/HRH).
* Provide Bluetooth data output choice.
