Huatec HD-120 High Precision Holiday Detector Online Porosity With Digital Display

Technical parameters

- Measuring range:0.03-10.00mm(Epoxy coal tar pitch,Petroleum asphalt medium)
- Output high voltage:0.5-35KV
- Display:digital display
- High voltage control system:digital governor
- 220V AC power supply
- Consumption:＜5w
- Alarm delay:1-2s
- High voltage probe:high pressure generator (import)
- Packing:Aluminum box
- Main dimension:165mm×155mm× 68mm
- Weight:1kg

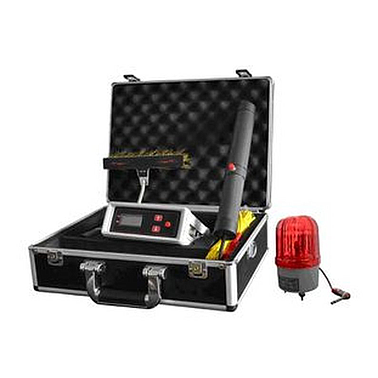

Standard delivery

- 220Vpower line 1
- High pressure gloves 1
- Long cable 1
- Short connecting line 1
- Connecting magnet 1
- Earth rod 1
- The brush plate 1
- Manual 1

Feature

- Microelectronic integrated high voltage generator,to overcome the electrostatic；
- digital display,high-precision；
- Automatic switch for High voltage and source voltage；；
- Power on self test function；
- protective function when mistakenly entered.


Technical parameters

- Measuring range:0.03-10.00mm(Epoxy coal tar pitch,Petroleum asphalt medium)
- Output high voltage:0.5-35KV
- Display:digital display
- High voltage control system:digital governor
- 220V AC power supply
- Consumption:＜5w
- Alarm delay:1-2s
- High voltage probe:high pressure generator (import)
- Packing:Aluminum box
- Main dimension:165mm×155mm× 68mm
- Weight:1kg

Standard delivery

- 220Vpower line               1
- High pressure gloves          1
- Long cable                   1
- Short connecting line          1
- Connecting magnet            1
- Earth rod                     1
- The brush plate               1
- Manual                      1
