Detailed Product Description

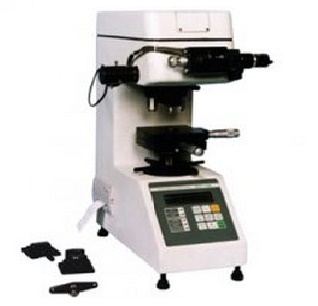

• Micro hardness tester Model HVS-1000 adopts precise mechanical technique and
• photoelectrical technique.
• The tester is able to adjust and measure either strong or weak
• light source, and is capable to pressure holding time of the test
• load and is displayed by LED
• This tester adopts peculiar indentation measuring, inverting
• and read mechanism through measuring once by the
• micrometer eyepiece
• It is easy to use, and high precision in measurement
Specifications of micro hardness tester HV1000
Test load 0.098, 0.246, 0.49, 0.98, 1.96, 2.94, 4.90, 9.80N (10-1000kgf)
Load holding time 5-60sec
Magnification of microscope Measuring:400x (Object lens 40x, Eyepiece 10x) Observation:100x (Object lens 10x, Eyepiece10x)
Loading mechanism Automatic loading and releasing method
Measuring
microscope Mechanical
Digital
Max.measuring length 150μm
Min.measuring unit 0.0625μm
Max.height of specimen Approx 65mm
Max.depth of specimen Approx 85mm
Micro test table Dimension:100_100mm Max.movement:25mm in X&Y axis Min .micro graduation:1/100mm
Digital data display (5-2500)HV
Automatic recorder
Photographic device Possible to install at any time
Dimensions of tester W290 ×D405×M480mm
Weight of tester 25kg
Power supply AC220V/110V±10% 50Hz/60Hz
Standard delivery of micro metal hardness tester HVS1000
Main unit 1
Micro Vickers indenter 1
10 × objective 1
40 × objective 1
Manual 1
Weight shaft 1
Cross testing table 1
Screwdriver 2
Horizontal adjusting screw 4
10× micrometer eyepiece 1
Micro Vickers hardness test block (high) 1
Micro Vickers hardness test block (medium) 1
Level 1
Lamp (6V/2 W) 2
Fuse 1A, 2A 2
Certificate 1
Manual for printer 1
Weight 6
Fine wire holder 1
Optional accessories of micro metal hardness tester HV1000
Depends on customer demand
Detailed Product Description
Specifications of micro hardness tester HVS1000
|
Test load |
0.098, 0.246, 0.49, 0.98, 1.96, 2.94, 4.90, 9.80N (10-1000kgf) |
|
Load holding time |
5-60sec |
|
Magnification of microscope |
Measuring:400x (Object lens 40x, Eyepiece 10x) Observation:100x (Object lens 10x, Eyepiece10x) |
|
Loading mechanism |
Automatic loading and releasing method |
|
Measuring microscope |
Mechanical |
|
Digital |
|
|
Max.measuring length 150μm |
|
|
Min.measuring unit 0.0625μm |
|
|
Max.height of specimen |
Approx 65mm |
|
Max.depth of specimen |
Approx 85mm |
|
Micro test table |
Dimension:100_100mm Max.movement:25mm in X&Y axis Min .micro graduation:1/100mm |
|
Digital data display |
(5-2500)HV |
|
Automatic recorder |
|
|
Photographic device |
Possible to install at any time |
|
Dimensions of tester |
W290 ×D405×M480mm |
|
Weight of tester |
25kg |
|
Power supply |
AC220V/110V±10% 50Hz/60Hz |
Standard delivery of micro metal hardness tester HVS1000
Main unit 1
Micro Vickers indenter 1
10 × objective 1
40 × objective 1
Manual 1
Weight shaft 1
Cross testing table 1
Screwdriver 2
Horizontal adjusting screw 4
10× micrometer eyepiece 1
Micro Vickers hardness test block (high) 1
Micro Vickers hardness test block (medium) 1
Level 1
Lamp (6V/2 W) 2
Fuse 1A, 2A 2
Certificate 1
Manual for printer 1
Weight 6
Fine wire holder 1
Optional accessories of micro metal hardness tester HVS1000
Depends on customer demand
