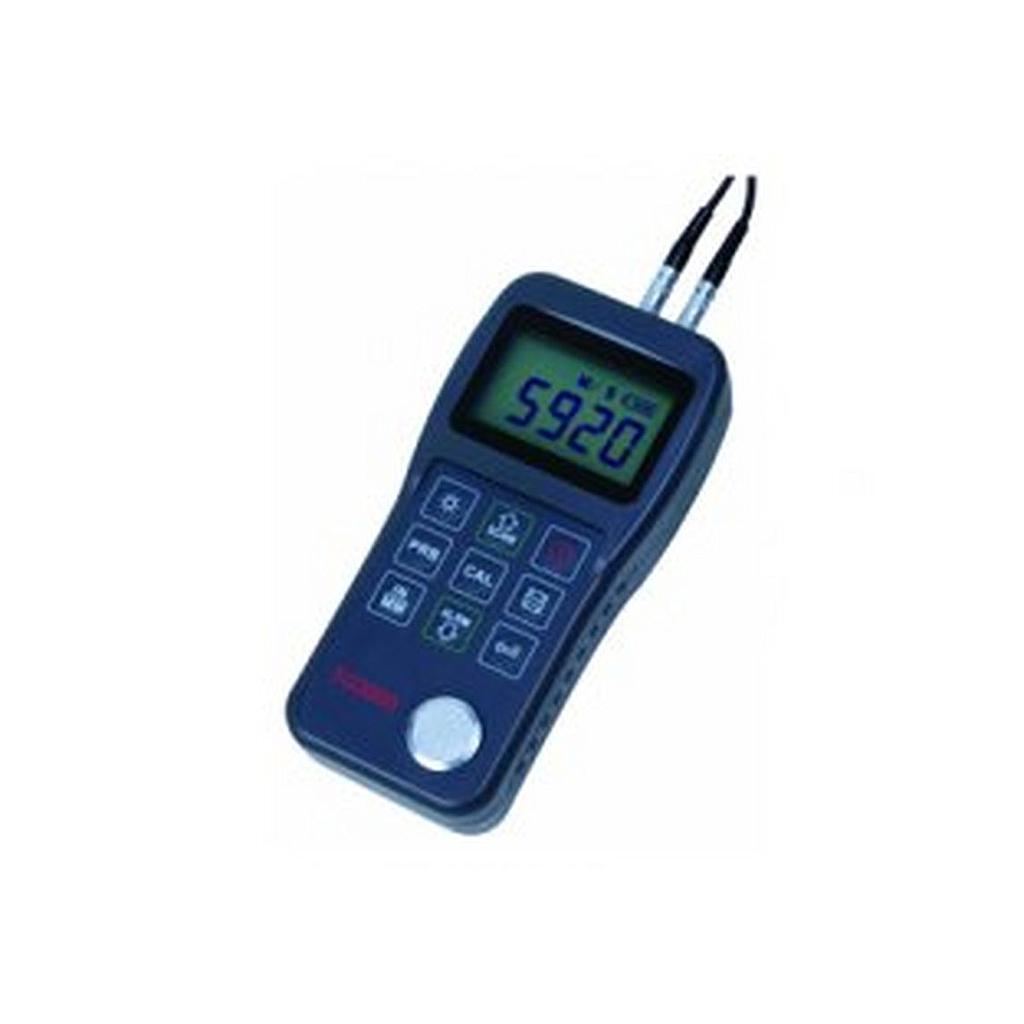

HUATEC TG3000 Ultrasonic Thickness Gauge (300/0.1mm)

Name: HUATEC TG3000 Ultrasonic Thickness Gauge (300/0.1mm)
Brand: HUATEC
Price: 414 USD
Availability: OutOfStock

ManufacturerHUATEC(View more products from this manufacturer)

ModelTG-3000

OriginChina

USD 414.00

Quantity

Secure Checkout

Quality Engagement

Easy change and return

Delivery Available

Detailed Product Description

Features

1.Capable of performing measurements on a wide range of material, including metals, plastic, ceramics, composites, epoxies, glass and other ultrasonic wave well-conductive materials.

2.Transducer models are available for special application, including for coarse grain material and high temperature applications.

3.Two-Point Calibration function.

4.Two work modes: Single point mode and Scan mode.

5.Coupling status indicator showing the coupling status.

6.Auto sleep and auto power off function to conserve battery life.

Specifications

1.Display: 4.5 digits LCD with EL backlight.

2.Measuring Range:0.75～300mm (in Steel).

3.Sound Velocity Range: 1000~9999 m/s.

4.Resolution: 0.1mm.

5.Accuracy: ±(0.5%Thickness+0.04)mm, depends on materials and conditions

6.Units:Metric/Imperial unit selectable.

7.Four measurements readings per second for single point measurement, and ten per second for Scan Mode.

8.Memory for up to 20 files (up to 99 values for each file) of stored values.

9.Power Source:Two “AA” size, 1.5 Volt alkaline batteries. 100 hours typical operating time (EL backlight off).

10.Outline dimensions:150×74×32 mm. Weight:245g

Configuration

	No.	Item	Quantity	Remarks
Standard Configuration	1	Main body	1
	2	Transducer	1	Model: N05/90°
	3	Couplant	1
	4	Instrument Case	1
	5	Operating Manual	1
	6	Alkaline battery	2	AA size
Optional Configuration	7	Transducer: N02
	8	Transducer: N07
	9	Transducer: HT5

Probe optional

Model	Freq MHZ	Diam mm	Measuring Range	Lower limit	Description
N02	2	22	3.0mm～300.0mm(In Steel)	20	for thick, highly attenuating, or highly scattering materials
N05	5	10	1.2mm～230.0mm(In Steel)	Φ20mm×3.0mm	Normal Measurement
N05 /90°	5	10	1.2mm～230.0mm(In Steel)	Φ20mm×3.0mm	Normal Measurement
N07	7	6	0.75mm～80.0mm (In Steel)	Φ15mm×2.0mm	For thin pipe wall or small curvature pipe wall measurement
HT5	5	14	3～200mm (In Steel)	30	For high temperature (lower than 300℃) measurement.
