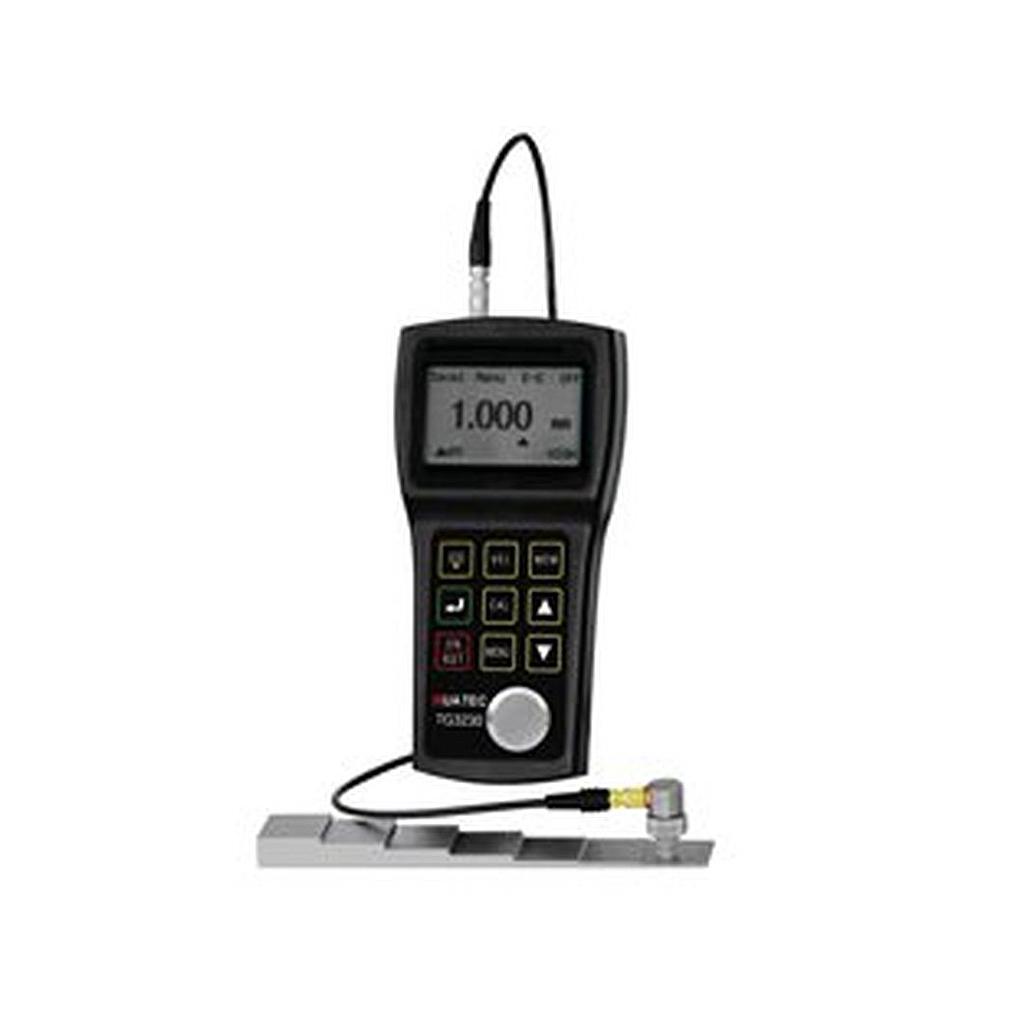

HUATEC TG-3230 High Precision Ultrasonic Thickness Gauge (20/0.001Mm)

Name: HUATEC TG-3230 High Precision Ultrasonic Thickness Gauge (20/0.001Mm)
Brand: HUATEC
Price: 2520 USD
Availability: OutOfStock

ManufacturerHUATEC(View more products from this manufacturer)

ModelTG-3230

OriginChina

USD 2,520.00

Quantity

Secure Checkout

Quality Engagement

Easy change and return

Delivery Available

SPECIFICATIONS

Measuring Range (for steel)	Interface-Echo Mode: (I-E or Standard Mode)	1.50mm– 20.0mm (0.059in – 0.787 in)
	Echo-Echo Mode: (E-E or High Precision Mode)	0.15mm– 10.0mm (0.006in – 0.394in)
Measuring Accuracy	±0.005mm or 0.0002 inch (if thickness < 3mm)
	±0.05mm or 0.002 inch (if thickness < 20mm)
Display Resolution	mm : 0.1 / 0.01 / 0.001
	inch : 0.01 / 0.001 / 0.0001
Sound Velocity Range	1000 to 9999 m/sec (0.0394 – 0.3936 inch/ms)
Measuring Refresh Frequency	4Hz in normal mode, up to 25Hz
Memory Capacity	500 test values
Multiple Calibrations	One point or Two Point
Display LCD	42×57mm LCD size with EI backlight and adjustable contrast, font size up to 13.75mm (0.54 inch)
Power Source	2 pcs. 1.5v AA size batteries
Continuous working period	About 200 hours (with backlight off)
Power off	Auto power off if idle for 4 minutes
Operating Temperature	-10 °Cto +50 °C
Unit Size	2.9 W x 5.9 H x 1.26 D inches (73 W x 149 H x 32 D mm).
Weight	200g

STANDARD DELIVERY

Ultrasonic Thickness Gauge TG-3230 Main unit with Calibration block (4.00 mm)
Precision Probe (D11R) with Replaceable Delay Tip
Coupling Paste
Operation Manual
Consumer-Type 2 AA Type Alkaline Battery (3 Volt)
Carrying Case

FEATURES

    * High Accuracy And Resolution Up To 0.001mm or 0.0001 inch
    * Measuring Ultra Thin Sample As Low As 0.15mm or 0.006 inch
    * Display Units:Imperlal And Metric
    * Automatic Self Calibration
    * Couplant Indicator
    * Automatic Power Off Device
    * High-Low Limit Alarm
    * Lcd Brightness Adjust
    * Low Battery Indictor
