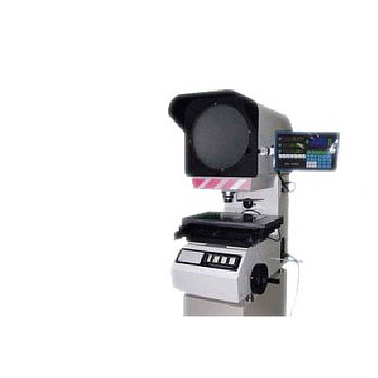

HUATEC VP12-1510 Profile Projector
Manufacturer: HUATEC Model: VP12-1510 Origin: China - Request a Quotation
- Contact
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222)730.39.68
HCM city: (028) 38.119.636
The Technical Specification of Profile Projector VP12 series (Unit: mm) | ||||||
1, Model | VP12-1510(Z) | VP12-2010(Z) | VP12-2515(Z) | |||
2, Travel of X and Y axis | 150x100 | 200x100 | 250x150 | |||
3, Metal stage dimension | 354 x 228 | 404 x 228 | 450 x 280 | |||
4, Glass Stage Dimension | 210 x 160 | 260 x 160 | 306 x 196 | |||
5, Travel: Z axis | 100 (for focusing) | |||||
6, Measuring accuracy (μm) | ≤3.0 + L/75 | |||||
7, Resolution (X/Y-axis) | 0.001 | |||||
8, Projector Screen | ◇ Size (mm) | Ø308, effective range≥Ø300mm | ||||
◇ Rotation range | 0 ~ 360º | |||||
◇ Angle resolution | 1’ or 0.01º | |||||
9, Objective | ◇ Magnification | 10X(Std.) | 20X(Opt.) | 50X(Opt.) | 100X(Opt.) | |
◇ Object view | Ø30 | Ø15 | Ø6 | Ø3 | ||
◇ Working distance | 77.7 | 44.3 | 38.4 | 25.3 | ||
10, Data Processor | DC-3000 multi-function data processing system: 1. Gathering the data and measuring point, circle, angle and distance 2. Coordinate rotation 3. RS-232 data output | |||||
11, Illumination | Transmission and reflection light source: 24V/150W-halogen lamp | |||||
12, Power | 110V/220V(AC) 50/60Hz | |||||
13, Light source cooling | Forced air cooling | |||||
14, Instruments dimension (mm) | 780 x 780 x 1100 | 780 x 780 x 1100 | 810 x 780 x 1100 | |||
15, Weight (Kg) | 160 | 170 | 180 | |||
16, Remark | The letter Z delegate the image is erect. |
big travel. The focus is adjusted by ascending and descending the projection box. The erect and revise
image can be selected by different customers’ request.
It is widely used in the field of mechanic, electronic, rubber industry, and college, research institute and
the measuring checking department for checking product quality. VP12 can inspect all kinds of surface
and outline of complicated work-pieces such as Template, Pressing work-pieces, Cam, Screw thread, Gear, etc.
It has foot-switch, LCD display digital readout DC-5000, mini-printer and 2D measuring software, and
other optional accessories for upgrade.
The Technical Specification of Profile Projector VP12 series (Unit: mm)
|
||||||
1, Model
|
VP12-1510(Z)
|
VP12-2010(Z)
|
VP12-2515(Z)
|
|||
2, Travel of X and Y axis
|
150x100
|
200x100
|
250x150
|
|||
3, Metal stage dimension
|
354 x 228
|
404 x 228
|
450 x 280
|
|||
4, Glass Stage Dimension
|
210 x 160
|
260 x 160
|
306 x 196
|
|||
5, Travel: Z axis
|
100 (for focusing)
|
|||||
6, Measuring accuracy (μm)
|
≤3.0 + L/75
|
|||||
7, Resolution (X/Y-axis)
|
0.001
|
|||||
8, Projector Screen
|
◇ Size (mm)
|
Ø308, effective range≥Ø300mm
|
||||
◇ Rotation range
|
0 ~ 360º
|
|||||
◇ Angle resolution
|
1’ or 0.01º
|
|||||
9, Objective
|
◇ Magnification
|
10X(Std.)
|
20X(Opt.)
|
50X(Opt.)
|
100X(Opt.)
|
|
◇ Object view
|
Ø30
|
Ø15
|
Ø6
|
Ø3
|
||
◇ Working distance
|
77.7
|
44.3
|
38.4
|
25.3
|
||
10, Data Processor
|
DC-3000 multi-function data processing system:
1. Gathering the data and measuring point, circle, angle and distance
2. Coordinate rotation
3. RS-232 data output
|
|||||
11, Illumination
|
Transmission and reflection light source: 24V/150W-halogen lamp
|
|||||
12, Power
|
110V/220V(AC) 50/60Hz
|
|||||
13, Light source cooling
|
Forced air cooling
|
|||||
14, Instruments dimension (mm)
|
780 x 780 x 1100
|
780 x 780 x 1100
|
810 x 780 x 1100
|
|||
15, Weight (Kg)
|
160
|
170
|
180
|
|||
16, Remark
|
The letter Z delegate the image is erect.
|
