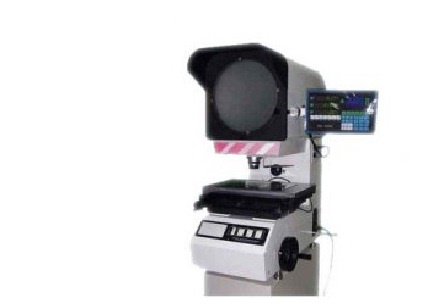

It has foot-switch, LCD display digital readout DC-5000, mini-printer and 2D measuring software, and other optional accessories for upgrade.
|
The Technical Specification of Profile Projector VP12 series (Unit: mm)
|
||||||
|
1, Model
|
VP12-1510(Z)
|
VP12-2010(Z)
|
VP12-2515(Z)
|
|||
|
2, Travel of X and Y axis
|
150x100
|
200x100
|
250x150
|
|||
|
3, Metal stage dimension
|
354 x 228
|
404 x 228
|
450 x 280
|
|||
|
4, Glass Stage Dimension
|
210 x 160
|
260 x 160
|
306 x 196
|
|||
|
5, Travel: Z axis
|
100 (for focusing)
|
|||||
|
6, Measuring accuracy (μm)
|
≤3.0 + L/75
|
|||||
|
7, Resolution (X/Y-axis)
|
0.001
|
|||||
|
8, Projector Screen
|
◇ Size (mm)
|
Ø308, effective range≥Ø300mm
|
||||
|
◇ Rotation range
|
0 ~ 360º
|
|||||
|
◇ Angle resolution
|
1’ or 0.01º
|
|||||
|
9, Objective
|
◇ Magnification
|
10X(Std.)
|
20X(Opt.)
|
50X(Opt.)
|
100X(Opt.)
|
|
|
◇ Object view
|
Ø30
|
Ø15
|
Ø6
|
Ø3
|
||
|
◇ Working distance
|
77.7
|
44.3
|
38.4
|
25.3
|
||
|
10, Data Processor
|
DC-3000 multi-function data processing system:
1. Gathering the data and measuring point, circle, angle and distance
2. Coordinate rotation
3. RS-232 data output
|
|||||
|
11, Illumination
|
Transmission and reflection light source: 24V/150W-halogen lamp
|
|||||
|
12, Power
|
110V/220V(AC) 50/60Hz
|
|||||
|
13, Light source cooling
|
Forced air cooling
|
|||||
|
14, Instruments dimension (mm)
|
780 x 780 x 1100
|
780 x 780 x 1100
|
810 x 780 x 1100
|
|||
|
15, Weight (Kg)
|
160
|
170
|
180
|
|||
|
16, Remark
|
The letter Z delegate the image is erect.
|
|||||
