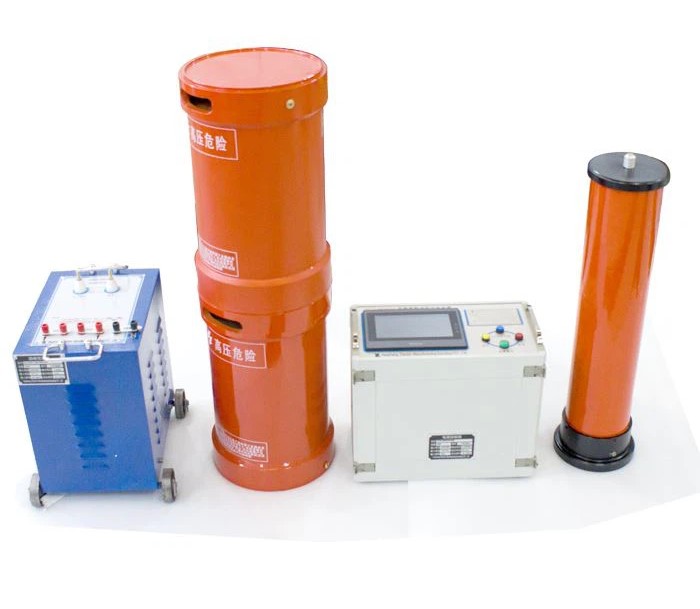

Variable frequency power source, 1 set: (customized accordingtouser’s demands)
Rated power: 6kVA;
Input voltage: single phase 220V or 380V±10% 45～65Hz
Output voltage: 0～200V adjustable (effective value)
Output voltage frequency: 30～300Hz
Regulation precision: coarse 2Hz stepping fine 0.1Hz stepping degree of instability 0.01%
Output current: 0～18A (maximum current varies along with different powers)
1.High-voltage electric reactor (4 sets in total): 27kV/1A(Thefollowingdata change according to different powers)
Rated operational voltage: 27kV
Rated operational current: 1A
Rated inductance value: 100H
Continuous working time: 60min
Temperature rise: less than 60°
Operating frequency: 30～300Hz
Exciting transformer, 1 set (The following data change according to different powers)
Rated capacity: 6kVA
Input voltage: 200V/400V
Output voltage: 1.25/2.5/5kV, 1.25kV for 10kVtransformer substation system withstand voltage test; 2.5kV for 35kV transformer substation system withstand voltage test.
Capacitive voltage divider, 1 set: 150KV capacitive (The following data change according to different voltages)
Capacitance of the device: 1000pF
Operating frequency: 30～300Hz
Degree of uncertainty: 1.5%
Rated voltage: 150kV/1000pF
