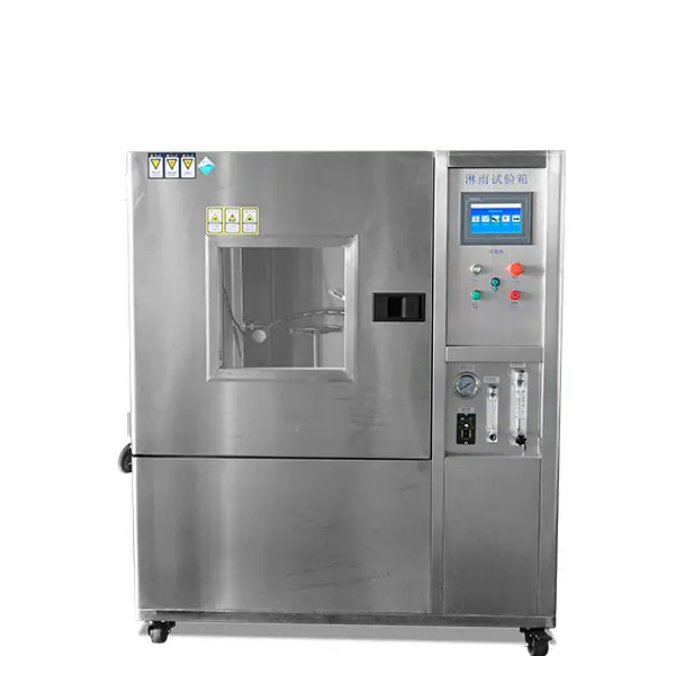

Huda HUD-E710-3 Water Shower Test Chamber (IPX5 & IPX6)
Manufacturer: Huda Model: HUD-E710-3 - Contact
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222)730.39.68
HCM city: (028) 38.119.636
Internal chamber size: 800Wx800Dx800Hmm/1000Wx1000Dx1000Hmm
External chamber size: 1200Wx900Dx3300Hmm/3500Wx1250Dx1800Hmm
IP Code: IPX5/IPX6
Internal diameter of spray nozzle: 6.3mm/12.5mm
Delivery rate: 12.5l/min±5% / 100l/min±5%
Chamber material: Internal: SUS304 stainless steel, external: stainless steel
Turn plate: Φ500mm
Spray duration time: 3,10,30,9999 min(adjustable)
Operating time: 1-9999min(adjustable)
Controller: PLC touch screen
Turntable: Diameter 300mm, rotate speed 3±1R/min
Distance from nozzle to enclosure surface: Between 2.5m and 3m
Power supply source: 3-phase, 380V±10%, 50Hz (can be appointed)
