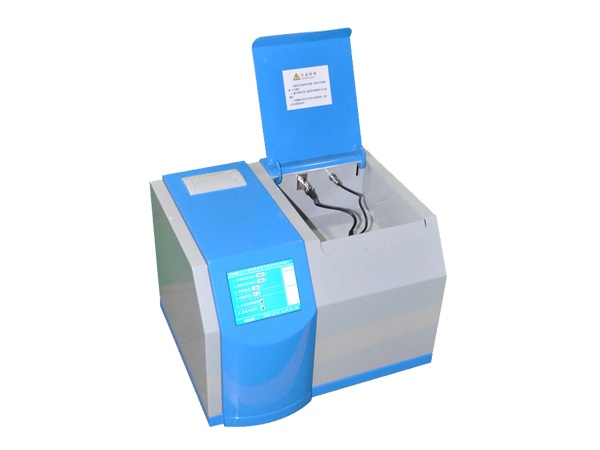

HV HIPOT GD6100B Transformer Oil Tan Delta Tester (5pF~200pF)
Manufacturer: HV HIPOT Model: GD6100B Origin: China Guarantee: 12 Month - Request a Quotation
- Contact
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222)730.39.68
HCM city: (028) 38.119.636
Voltage supply: AC 220V±10%
Power frequency: 50Hz/60Hz ±1%
Measuring range
Capacitance: 5pF~200pF
Relative Permitivity: 1.000~30.000
Dielectric loss factor: 0.00001~100
DC Resistivity: 2.5MΩm~20TΩm
Measuring accuracy
Capacitance: ± (1% of reading+0.5pF)
Relative Permittivity: ±(1~10)% of reading
Dielectric dissipation factor: ± (5% of reading+0.0002)
DC Resistivity: ±10% of reading
Resolution
Capacitance: 0.01pF
Relative capacitivity: 0.001
Dielectric dissipation factor: 0.00001
Measured temperature range: 0~120℃
Temperature measurement error: ±0.5℃
AC Test Voltage: 200~2200V Continuously adjustable, frequency 50Hz
DC Test Voltage: 0~500V Continuously adjustable
Power consumption: 100W
Ambient temperature: 0℃~40℃
Relative humidity: <75%RH
Dimensions: 450*410*320mm
Total weight: 25kg
