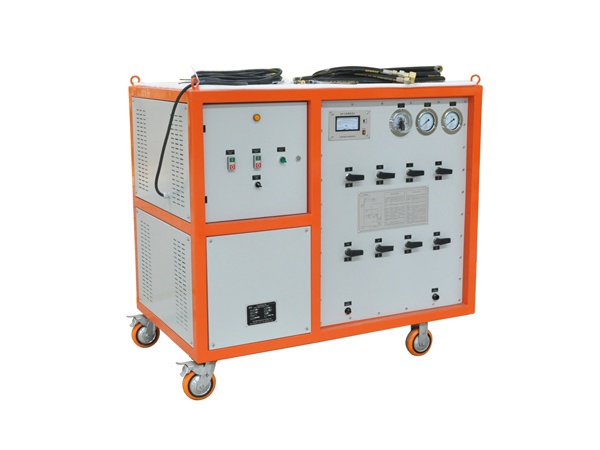

HV HIPOT GDQH-601 SF6 Gas Recycling Machine
Manufacturer: HV HIPOT Model: GDQH-601 Origin: China Guarantee: 12 Month - Request a Quotation
- Contact
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222)730.39.68
HCM city: (028) 38.119.636
Mode: Frozen liquefaction, air cooling, movable
Working environment temperature: -10℃~40℃
Recycle
- Initial pressure(Mpa): 0.8
- Terminal pressure(Mpa): ≤0.05
- 1m3 Volume necessary time(h/m3): ≤1
Air inflation
- Initial pressure(Pa): ≤133
- Terminal pressure(Mpa): 0.8
- 1m3 Volume necessary time(h/m3): ≤0.3
Time for vacuuming from 0.1Mpa to 133Pa (h/m3 ): ≤0.5
Limit vacuum (Pa): ≤10
Yearly leakage rate: ≤0.5%
SF6 gas purity after recycle
- Water(PPM/V): ≤60
- Oil (PPM/W): ≤3
- Dust (um): ≤1
Storage
- Storage mode: liquid
- Pressure(MPa): 4.0
- Volume(L): 50
- Liquid storage quantity(kg): 50
Liquefaction mode: Frozen liquefaction
Vaporization mode: Electric heating
Dry filter regenerative way: Vacuum heating Activate regeneration
Power supply: Three phase five line; 3Φ 380V zero line available
Total power (kW): 11
Noise dB(A): ≤75
Dimension (mm): 1450mm*810mm*1200mm
Weight (kg): ≤500KG
