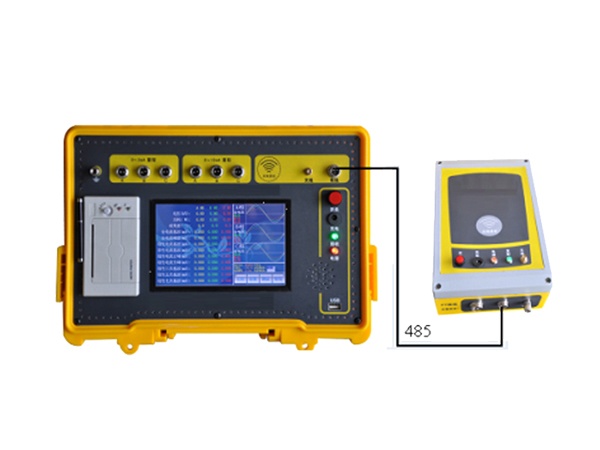

HV HIPOT GDYZ-302 Wireless Zinc Oxide Surge Arrester Tester (30~100V)

Power supply: Supporting external power adapter (12V/2A) and internal battery

Measurement range:

- Leakage current (peak value) : 0~ 10mA (Extensible)

- Voltage (peak value) : 30- 100V(Extensible)

Measurement accuracy:

- Current: ±2% reading±1 digital at full current> 100 μA

- Voltage: ±5% reading +1 digital at reference voltage signal< 30V:

- Voltage: Reference voltage signal > 30V:

- Wire mode: +2% reading +1 digital;

- Wireless mode: +5% reading +1 digital;

Measurement parameters:

- Full current waveform, fundamental RMS and peak value of leakage current;

- The fundamental wave RMS of leakage current resistive component and RMS of 3, 5 and 7 times;

- Leakage current resistance component peak value: positive peak Ir + negative peak Ir- ;

- Capacitive current fundamental wave, full voltage, full current phase angle difference;

- Voltage RMS;

- Arrester power consumption;

Sampling method of voltage reference signal:

- Wire Synchronization: 40m (Extensible)

- Wireless Synchronization: > 400m (Extensible)

Battery:

- Charging time: > 6 hours

- Continuously working time: > 4hours

- Interval working time: > 8 hours

Dimension:

- Main unit: 36cm*26cm*14cm

- Accessories box: 36cm*26cm*14cm

Weight: Main unit: 5.0kg , Accessories box : 9.0kg
