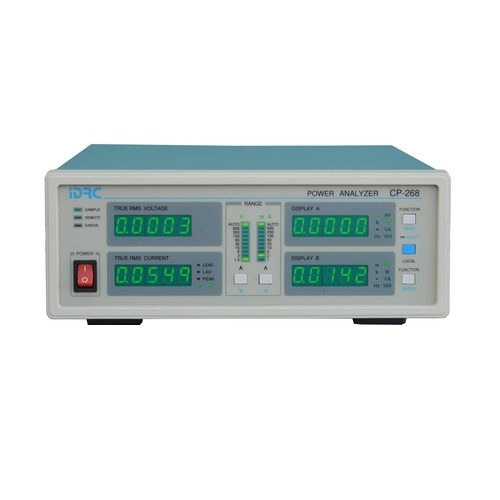

iDRC CP-268-2 Multi-Range Power Meter (600V, 20A, 12000W)

Voltage range: 1,5V - 600V RMS (9 ranges)

Current range: 1mA - 20A RMS (15 ranges)

Power range: 1.5mW - 12kW (126 ranges)

Frequency: 10Hz - 1000Hz

Baud rate: 9600 / 19200 / 38400 / 57600 / 115200 bps

Interface: RS-485 Standard; GPIB Optional.

Dielectric strength: 2.2KV AC (50/60Hz) for one minute between input terminals and case.

Insulation resistance: More than 20MΩ at 500V dc between input terminals and case between case and power line.

Operating temperature: 5 to 50 ℃ (41 to 104℉)

Humidity range: 10 to 90% (relative humidity) non-condensing.

Line requirements: AC115V or 230V ± 15%, 47 to 63 Hz 8VA

Dimensions / Weight: 260x110x360 (WxHxD) / 5.7kgs net.

Order Information

CP268-OPT01 GPIB interface

CPA-661 Universal socket Adapter, Max 15Arms

CPA-662 Universal socket Adapter, Max 15Arms , with NFB

CPA-668 Universal socket Adapter, Max 15Arms

CPR-200 Rack mounting kit
