Electrical design: PNP/NPN
Output function: normally open
Sensing range[mm]: 3

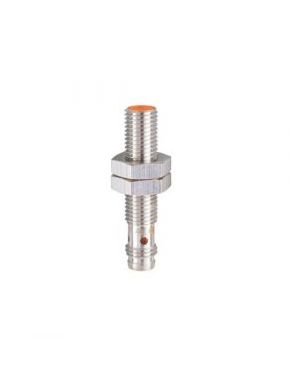

Housing: threaded type
Dimensions[mm]: M8 x 1 / L = 40
Electrical data
Operating voltage[V]: 10...30 DC
Protection class: III
Reverse polarity protection: yes
Outputs
Electrical design: PNP/NPN
Output function: normally open
Max. voltage drop switching output DC[V]: 3.5
Minimum load current[mA]: 2; (only in 2-wire operation)
Max. leakage current[mA]: 0.5; (only in 2-wire operation)
Permanent current rating of switching output DC[mA]: 100
Switching frequency DC[Hz]: 800
Short-circuit protection: yes
Overload protection: yes
Detection zone
Sensing range[mm]: 3
Real sensing range Sr[mm]: 3 ± 10 %
Operating distance[mm]: 0...2.4
Accuracy / deviations
Correction factor: steel: 1 / stainless steel: 0.7 / brass: 0.5 / aluminium: 0.4 / copper: 0.3
Hysteresis[% of Sr]: 1...20
Switch point drift[mm]: -10...10
