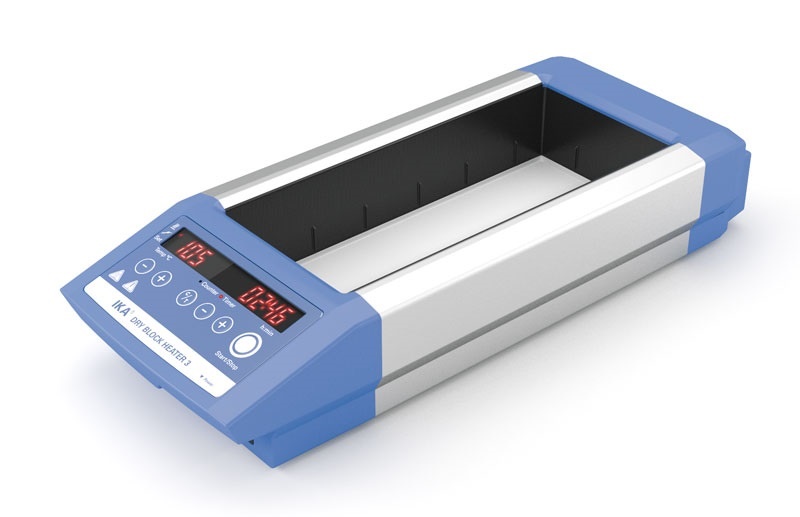

IKA Dry Block Heater 3 (0004025300)

Number of blocks: 3

Heat output: 330 W

Heating temperature range: room temp. +5° - 120 °C

Temperature display: yes

Adjustment and display resolution: 1 K

Connection for ext. temperature sensor: CT (DIN12878)

PT 1000 variation;DIN EN 60751 Kl. A: ≤ ± (0.15 +0.002xITI) K

Temperature stability within the blocks at 37°C *: 0.2 ±°C

Temperature stability within the blocks at 60°C *: 0.4 ±°C

Temperature Homogenity @ 37°C *: 0.3 K

Temperature Homogenity @ 60°C *: 0.6 K

Heatingrate / Heat up time with external sensor *: 4 K/min

Set-up plate material: Aluminium alloy

Set-up plate dimensions: 96 x 228 mm

Fixed safety circuit: 150 °C

Timer: yes

Time setting range: 1 - 5999 min

* Measured in IKA DBH Testingblock: Refer Manual for more details

Dimensions (W x H x D): 151 x 73 x 380 mm

Weight: 1.6 kg

Permissible ambient temperature: 5 - 40 °C

Permissible relative humidity: 80 %

Protection class according to DIN EN 60529: IP 21

Voltage: 220 - 240 / 115 / 100 V

Frequency: 50/60 Hz

Power input: 330 W
