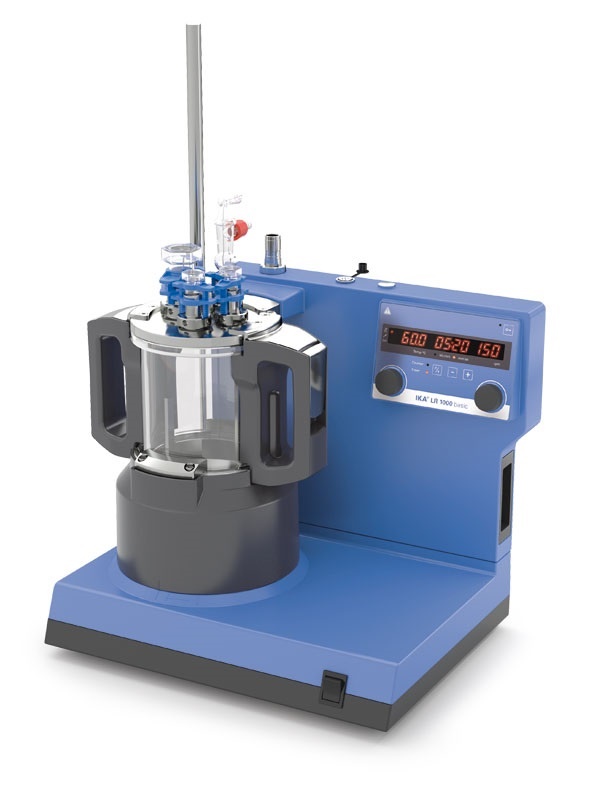

IKA LR 1000 basic Package (0008040100)
Manufacturer: IKA Model: LR 1000 (0008040100) Origin: Germany Guarantee: 12 Month - Request a Quotation
- Contact
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222)730.39.68
HCM city: (028) 38.119.636
Useable volume max.: 1000 ml
Useable volume without disperser tool min.: 500 ml
Working temperature max.: 120 °C
Attainable vacuum: 25 mbar
Viscosity max.: 100000 mPas
Speed range: 10 - 150 rpm
Support rod diameter (with integrated fastening on stand): 16 mm
Material in contact with medium AISI 316L, 1.4571, borosilicate glass 3.3, PTFE, PEEK, FKM
Reactor vessel openings (units/standard): 1/NS 29/32, 3/NS 14/23
Permissible ON time: 100 %
Temperature measurement resolution: 0.1 K
Nominal torque: 3 Nm
Heat output: 1000 W
Cooling medium permissible operating pressure: 1 bar
Speed min (adjustable): 10 rpm
Heating temperature max.: 180 °C
Adjustable safety circuit: 47 - 225 °C
Adjustable safety circuit, temperature deviation: 10 - 20 ±K
Cooling medium temperature min.: 3 °C
Set temperature resolution: 1 ±K
Heat control accuracy of medium with sensor: 0.2 ±K
Speed deviation: 5 ±rpm
Speed display: 7 segment LED
Heat control: LED
Connection for ext. temperature sensor: PT 100
Timer: yes
Timer display: 7 segment LED
Speed control: 1 RPM steps
Type of cooling: flow
Temperature display: yes
Safety temperature display: LED
Display for operation with ext. sensor: yes
Safety cutout: yes
Dimensions (W x H x D): 443 x 360 x 295 mm
Weight: 16 kg
Permissible ambient temperature: 5 - 40 °C
Permissible relative humidity: 80 %
Protection class according to DIN EN 60529: IP 21
RS 232 interface: yes
USB interface: yes
Voltage: 230 / 115 V
Frequency: 50/60 Hz
Power input: 1200 W
