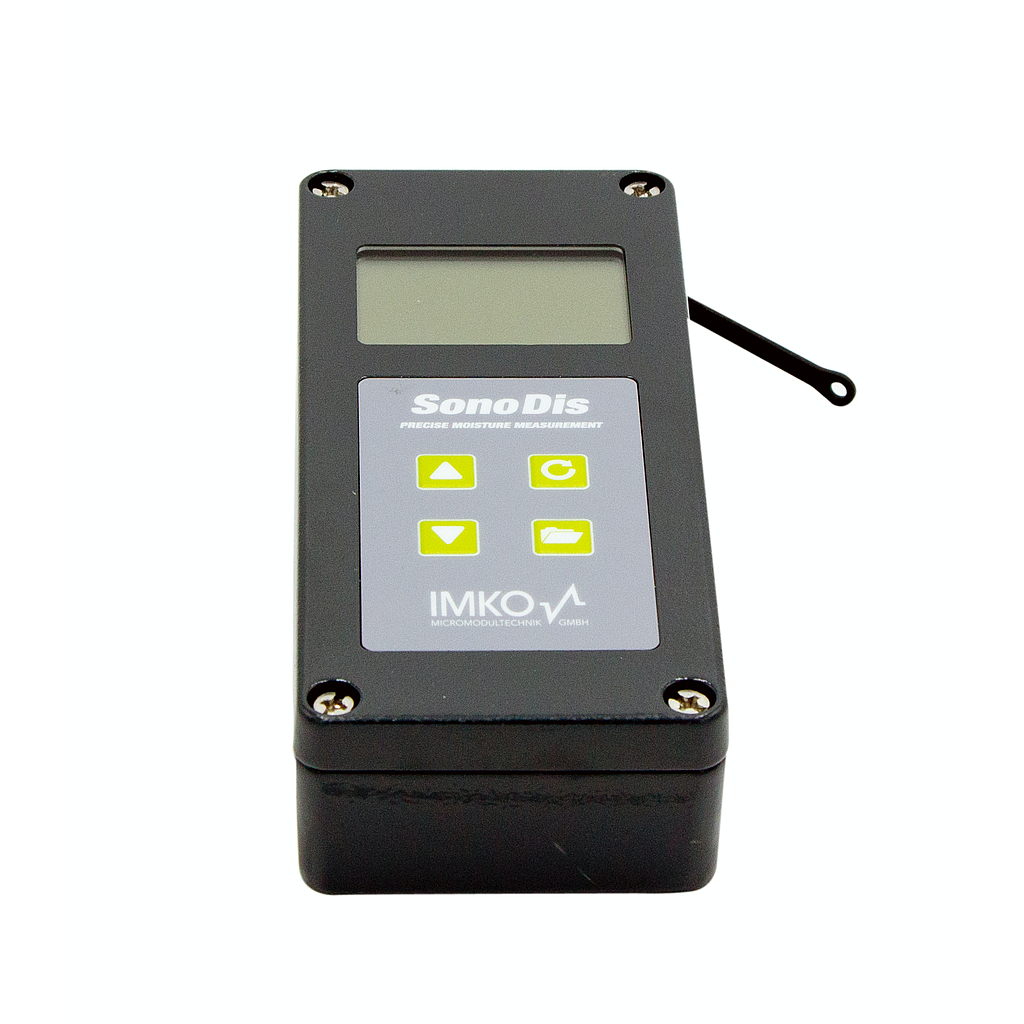

Imko SONO-DIS Concrete moisture

Height: 36mm

Width: 64mm

Length: 150mm

Weight (including accumulator): approx 437g

Power Consumption: Power Down approx 35µA

Idle

- Background Illum. OFF approx 26mA

- Background Illum. Max approx 56mA

Probe turned ON approx 100mA

Measurement approx 350mA

Measurement per Charge

20°C / Background Illum. Max

Mode – Continuous Measurement approx 5000

Connectable Sensors: SONO-WZ

Storage Temperature: -30°C up to 80°C

Operating Temperature: -20°C up to 70°C

Charging Temperature: 10°C up to 30°C

Charging Voltage Nom.12V, Max.15V, Min.12V

Charging Current: approx 1A

Charging Time: At exhaustively discharged accumulator.2h

Accumulator: Ni-MH (4 x 1.2V) (AA), 2000mAh, >1000 Measurements

Physical BUS:: RS485

Bus-Protocol IMP-BUS-Protocol II

IMP-Bus Port Settings: 8 Data Bits, 2 Stop Bits, Odd Parity
