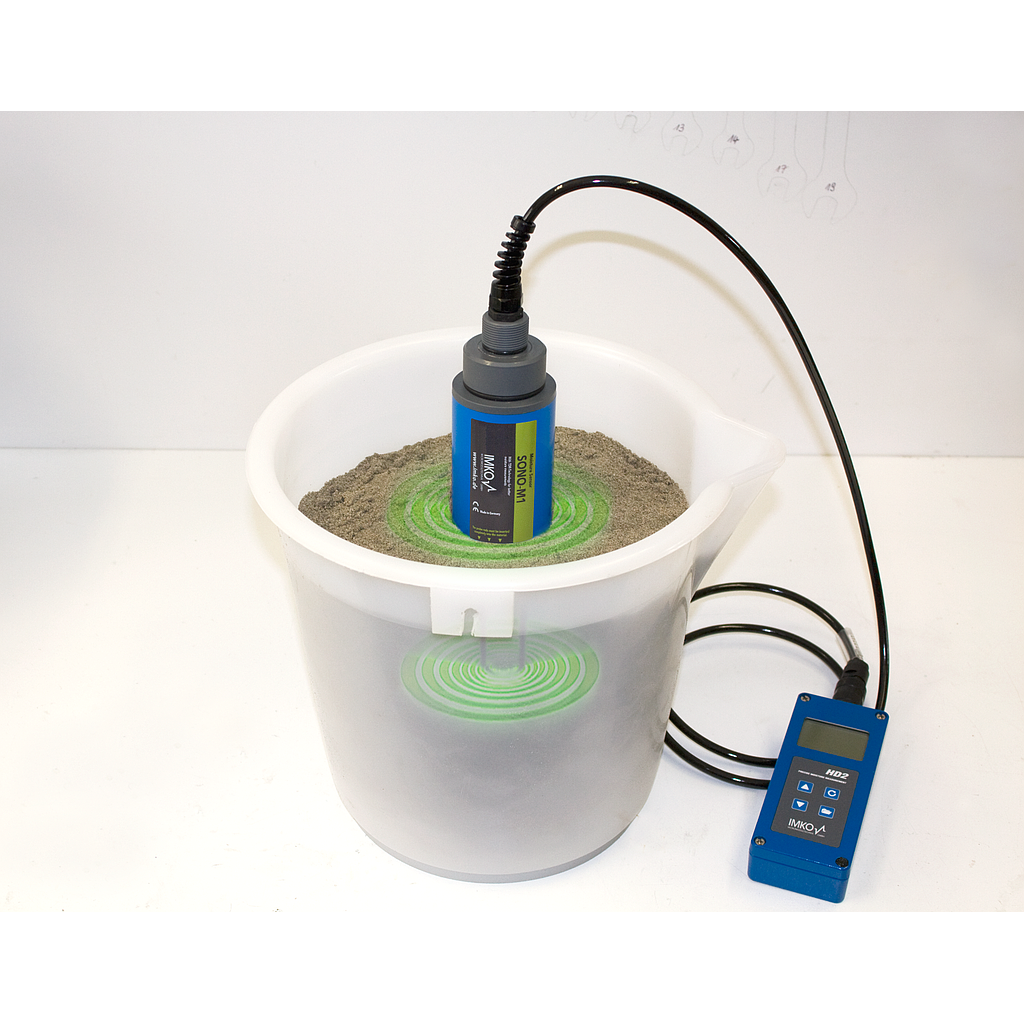

Imko SONO-M1 Concrete moisture

Measurement moisture

Range: 0...100% H2O (depending on materials)

Accuracy: ±0.2%

Measurement conductivity

Range: 0..5dS/m

Accuracy: ±0.3%

Measurement temperature

Range: -15...+50°C

Accuracy: ±0,5°C

Material type : sand, gravel, crushed stone, etc.

Measuring technology : TRIME® (Time-Domain-Reflectometry with Intelligent Micromodule Elements)

Measuring principle : radar wave frequency 600MHz to 1.2 GHz

Measurement volume : approx. 1 liter

Operating temperature : -15...+50°C

Power supply : 7...24Vdc

Power consumption : 12Vdc, 100mA

Material probe body : waterproof seal PVC

Dimension : 155 x Ø63mm

Rod length : 130 mm

Rod diameter : 6 mm

Interface : 1,5m cable with 7-pin female connector

Protection class : IP68
