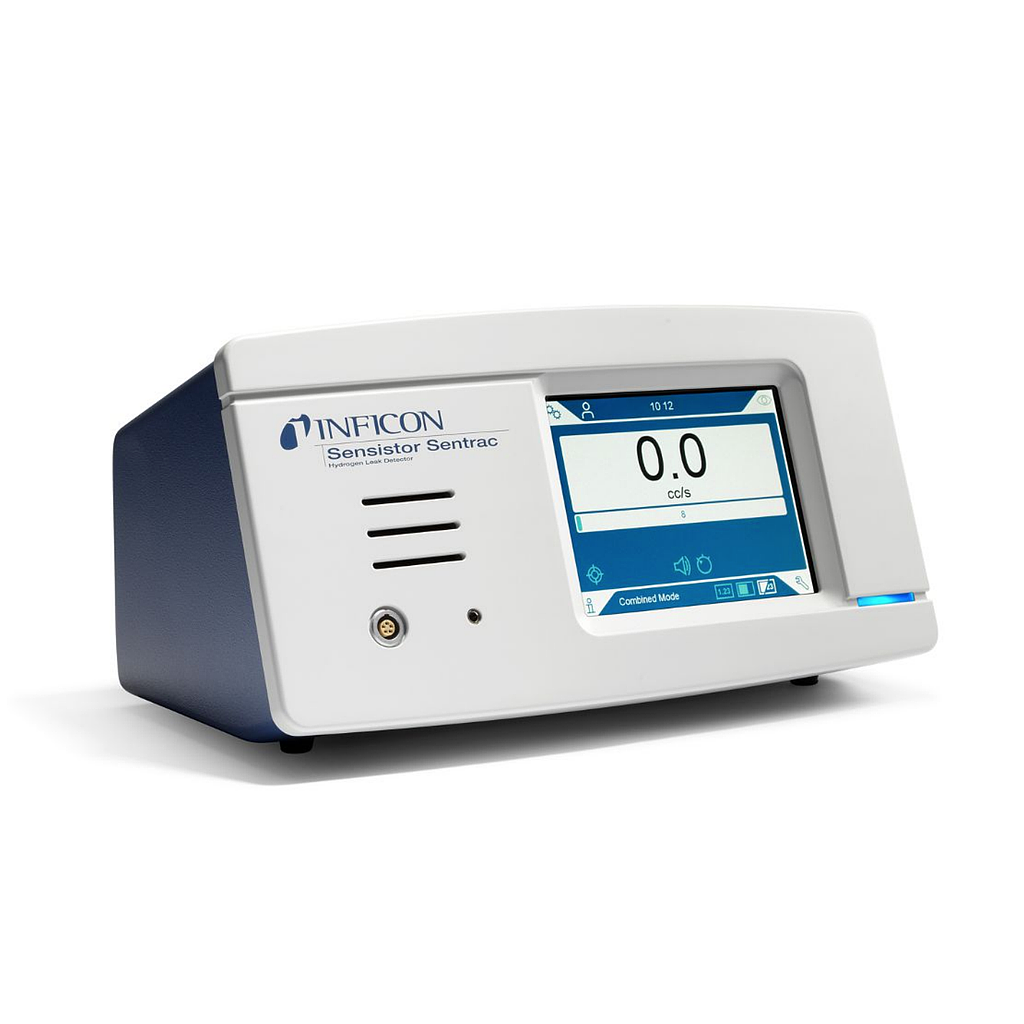

INFICON Sensistor Sentrac Hydrogen Leak Detector (desktop model)

Min. detectable leak (Locating Mode): 5 x10-7 mbarl/s or cc/s with 5% H2

Min. detectable leak (Measuring Mode): 0.5 ppm H2; 5x10-7 mbarl/s or cc/s with 5% H2

Start time: 40 sec

Calibration: External calibration leak or calibration gas

In- and outputs: Probe Control Port (Digital 5 in/15 out), 24V (dc); USB-C (RS232, USB-Memory); BM1000 (Expansion Communication Module)

Maintenance: free

Power supply : 100–240 V (ac), 50/60 Hz, 67 W max. load

Dimensions (W x H x D): 305 x 166 x 188 mm  (12 x 6.5 x 7.4 in.)

Weight (exclusive probe, probe cable and case): 3.5 kg (7.7 lb.)

Operating time (battery model): 15 hours

Charge time (battery model): 14.5 hours (8 hours charging will give about 8 hours of operation)
