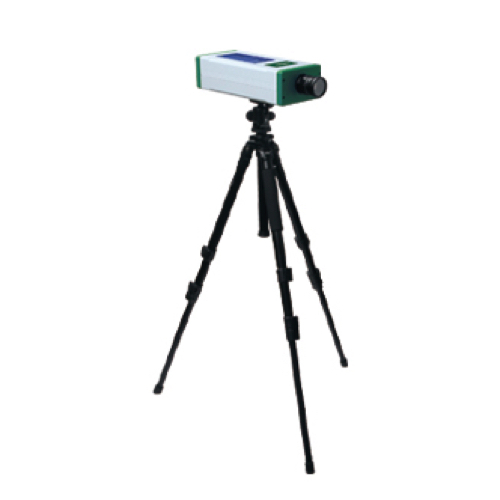

INSIZE 0030-LM15 Laser Vibrometer (4mW, ±50mm/s, ±500mm/s, ±5000mm/s)

Laser: Output < 4mW, wavelength 632.8nm, class 3A laser product

Working Distance: 0.35mm~10m (depending on surface)

Speed Decoder:

Bandwidth: DC~20kHz

Range: ±50mm/s, ±500mm/s, ±5000mm/s (adjustable)

Maximum Speed Resolution*: 0.1µm/s/√Hz

Maximum Linearity Error: ±1%

Output Voltage Range: ±10 V

Output:

Digital Signal: Ethernet Port

Analogue Signal: BNC Port

Low-Pass Filter: 500Hz, 2kHz, 20kHz

Gear Control and Display: 7-inch colour touchscreen with interactive menu-guided setting

Power Supply: Power adapter

Operation Temperature: 5°C~45°C

Storage Temperature: -10°C~65°C

Dimension: 382×160×94mm

Weight: 5.2kg

*Maximum speed resolution is defined as the signal amplitude (RMS) measured at 10Hz with a signal-to-noise ratio of OdB when a reflective film is applied at a distance of 2 meters

STANDARD DELIVERY:

Main Unit (including speed decoder): 1 pc

Tripod: 1 pc

Power Adapter: 1 pc

Software: 1 pc
