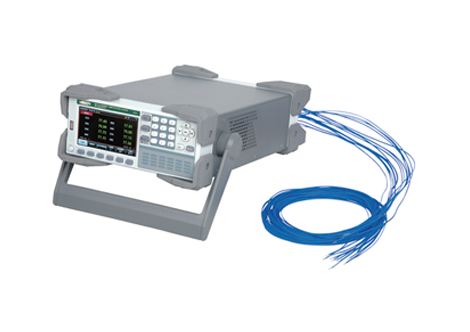

INSIZE 0350-MC32 Multi-channel Temperature Loggers (32 channels)

Specification:

Code: 0350-MC32

Channel number: 32

Weight: 3.7kg

- Thermocouple type: K/J/T/E/N/S/R/B

- Temperature range (clectrical signal):

Type K thermocouple: -100°C~1350°C

Type J thermocouple: -100°C~1200°C

Type T thermocouple: -150°C~400°C

Type E thermocouple: -100°C~850°C

Type N thermocouple: -100°C~1300°C

Type S thermocouple: 0°C~1750°C

Type R thermocouple: 0°C~1750°C

Type B thermocouple: 600°C~1800°C

- Temperature accuracy* (electrical signal):

Type K thermocouple: ±1.2°C (-100°C~0°C); ±0.8°C (0°C~1350°C)

Type J thermocouple: ±1.0°C (-100°C~0°C); ±0.7°C (0°C~1200°C)

Type T thermocouple: ±1.0°C (-150°C~0°C); ±0.8°C (0°C-400°C)

Type E thermocouple: ±0.9°C (-100°C~0°C); ±0.7°C (0°C-850°C)

Type N thermocouple: ±1.5°C (-100°C~0°C); ±0.7°C (0°C~1300°C)

Type S thermocouple: ±4.5°C (0°C~100°C); ±3.0°C (100°C-300°C); ±2.2°C (300°C~1750°C)

Type R thermocouple: ±4.5°C (0°C~100°C); ±3.0°C (100°C~300°C); ±2.2°C (300°C~1750°C)

Type B thermocouple: ±5.5°C (600°C~800°C); ±3.8°C (800°C~1000°C); ±2.5°C (1000°C~1800°C)

- Temperature resolution: 0.01°C

- Test speed: fast: 500ms, slow: 1s

- Cold junction: accuracy: 0.5°C

- Interface:

communication interface: RS232C/LAN

storage interface: USB (only U disk)

- Remote control: baud rate supports up to 115200bps, compatiable with SCPI protocol and ASCII transmission

- Power supply:

AC: 100V~240V, 50/60Hz

AC/DC adapter: 24V/1A (optional)

- Operation environment:

temperature: 10°C~40°C.

humidity: 0%~90% RH (non-condensing).

- Storage environment:

temperature: 0°C~50°C.

humidity: 0%~90% RH (non-condensing).

- Dimension: 370 x 260 x 100 mm

*Accuracy is specified for main unit in the ambient temperature between 15°C and 35°C, the above specification does not include thermocouple probe error.

Standard Delivery:

Main unit: 1pc

K-type thermocouple (0350-K01)*: 8/16/32/48 pcs

RS232 cable: 1pc

Software: 1pc

*Number of thermocouples corresponding to the number of channels
