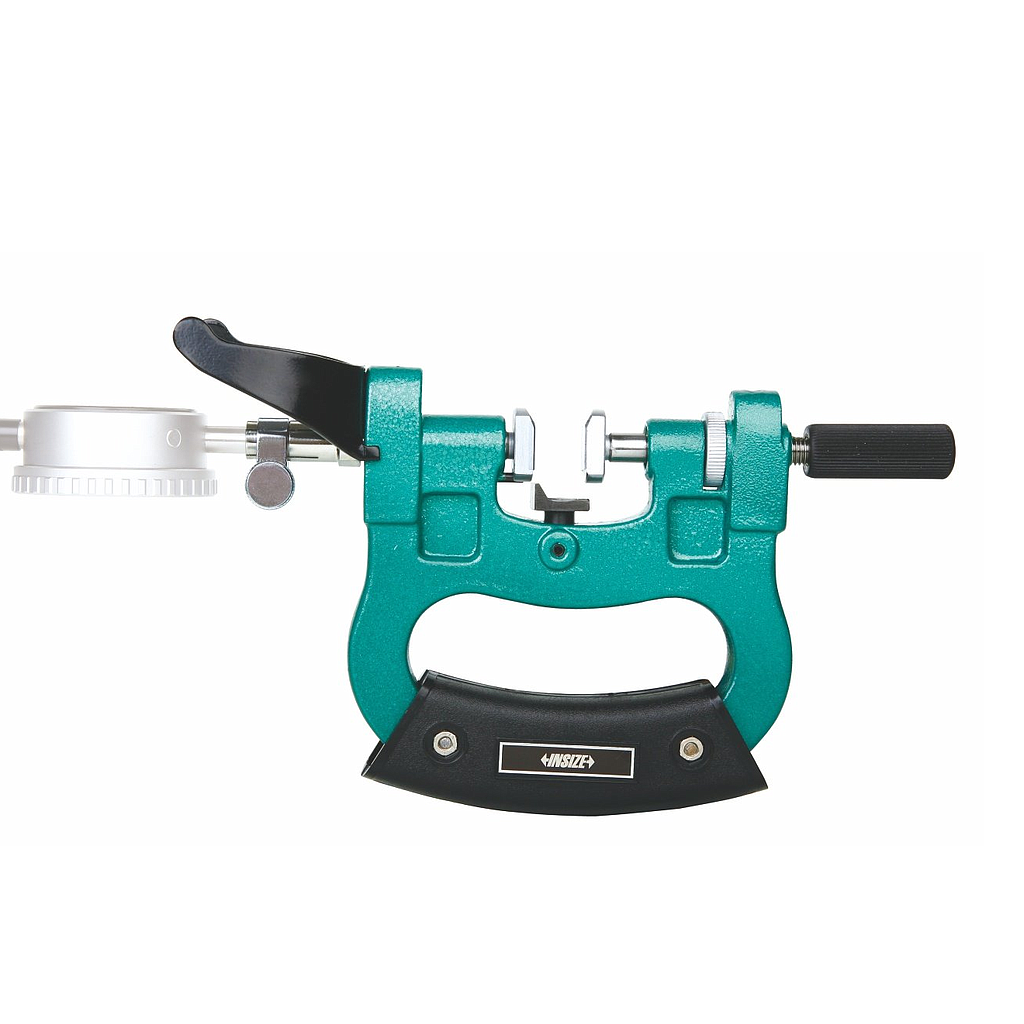

INSIZE 2186-75 Dial Snap Gage (50-75mm)
Manufacturer: INSIZE Model: 2186-75 Guarantee: 12 Month - Contact
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222)730.39.68
HCM city: (028) 38.119.636

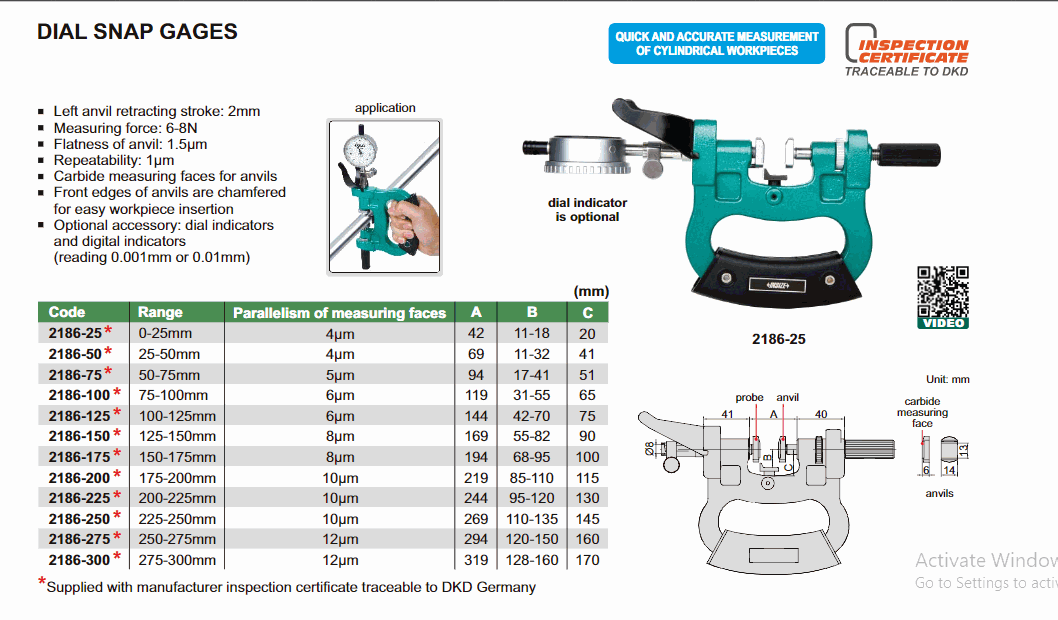

Range: 50-75mmmm
Parallelism of measuring faces: 5µm
A: 94mm
B: 17-41mm
C: 51mm
Left anvil retracting stroke: 2mm
Measuring force: 6-8N
Flatness of anvil: 1.5µm
Repeatability: 1µm
Carbide measuring faces for anvils
Front edges of anvils are chamfered for easy workpiece insertion
Optional accessory:
- Dial indicators and digital indicators (reading 0.0001mm or 0.01mm)
